Android 基于Mqtt开发消息推送服务
技术：Sprint Boot + Android + Mqtt +Http
概述
现在很多App都有消息推送服务,这两天研究了一下mqtt协议,做了个Android Demo(可保证每条推送都受到)
详细

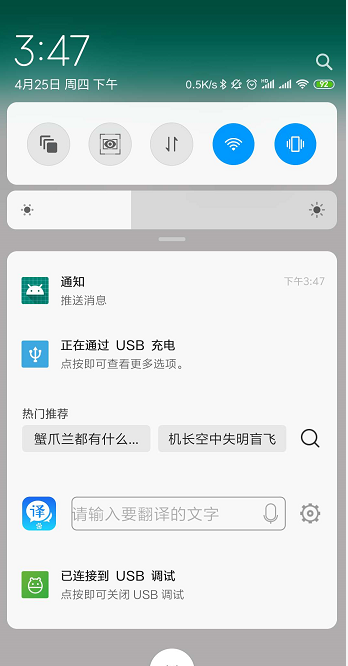

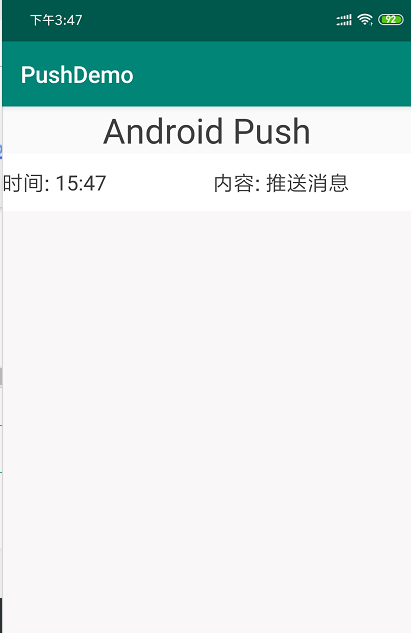

一、效果图

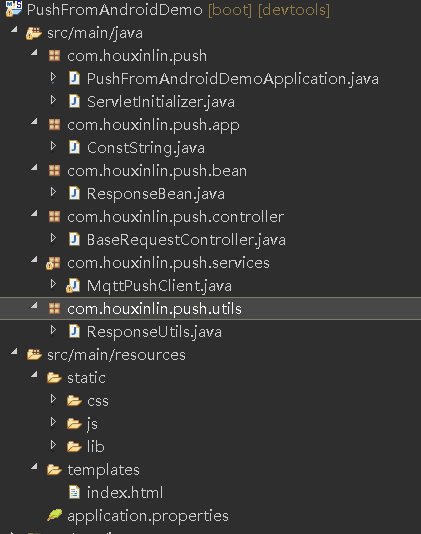

二、项目目录结构图
三、Mqtt介绍
摘自---->http://www.runoob.com/w3cnote/mqtt-intro.html
MQTT（Message Queuing Telemetry Transport，消息队列遥测传输协议），是一种基于发布/订阅（publish/subscribe）模式的"轻量级"通讯协议，该协议构建于TCP/IP协议上，由IBM在1999年发布。MQTT最大优点在于，可以以极少的代码和有限的带宽，为连接远程设备提供实时可靠的消息服务。作为一种低开销、低带宽占用的即时通讯协议，使其在物联网、小型设备、移动应用等方面有较广泛的应用。
MQTT是一个基于客户端-服务器的消息发布/订阅传输协议。MQTT协议是轻量、简单、开放和易于实现的，这些特点使它适用范围非常广泛。在很多情况下，包括受限的环境中，如：机器与机器（M2M）通信和物联网（IoT）。其在，通过卫星链路通信传感器、偶尔拨号的医疗设备、智能家居、及一些小型化设备中已广泛使用。
四、Apache Apollo 安装
在这里不做介绍,详细请看https://www.cnblogs.com/xiaojitui/p/7874654.html
五、实现思路
1:使用Spring Boot接收前端传来得字符----->调用Mqtt向某个主题push消息----->android连接Mqtt服务器------>订阅相关主题--------->在回调mqtt回调中做相关业务
六、使用Spring Boot 接收前端传来得数据
1:在这里主要用到@RequestParam注解取到前端传过来得数据,之后调用Mqtt把这个数据推送到android上
@Controller
public class BaseRequestController {
@Autowired
private MqttPushClient mMqtt;
@RequestMapping("/")
private String index() {
return "index";
}
@RequestMapping("api/android/push")
@ResponseBody
private ResponseBean<String> push(@RequestParam("pushStr")String pushStr){
mMqtt.publish(ConstString.ANDROID_PUSH_TOPIC, pushStr);
System.out.println(pushStr);
return ResponseUtils.success("",pushStr);
}
}<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title></title>
<link rel="stylesheet" type="text/css" href="css/style.css" />
<link rel="stylesheet" type="text/css" href="css/bootstrap.min.css" />
<script src="js/jquery.min.js" type="text/javascript" charset="utf-8"></script>
<script src="lib/layui/layui.all.js" type="text/javascript" charset="utf-8"></script>
</head>
<body>
<div class="main-box">
<div class="left-box">
<div class="item-left-box">推送</div>
</div>
<div class="content">
<input id="pushText" type="text" />
<button id="pushButton">推送()</button>
</div>
<script type="text/javascript">
$("#pushButton").click(function() {
var pushStr = $("#pushText").val();
var json = {
"pushStr" : pushStr
};
$.post("/api/android/push",
json,
function(data, status) {
if(data.code==0){
layer.msg('推送成功,请注意查看手机');
}
});
});
</script>
</div>
</body>
</html>七、Android接收推送过来得数据
1:首先需要添加依赖
implementation 'org.eclipse.paho:org.eclipse.paho.client.mqttv3:1.1.1' implementation 'org.eclipse.paho:org.eclipse.paho.android.service:1.1.1'
2:在AndroidManifest.xml中注册服务,经过测试,如果不加这个,可能没办法连接Mqtt服务器
<service android:name="org.eclipse.paho.android.service.MqttService" />
3:编写连接Mqtt服务器代码 Mqtt.java
public class Mqtt implements MqttCallback ,IMqttActionListener {
private static Mqtt mMqttServer;
private MqttAndroidClient mClient;
private boolean isConninging;
private Map<String,Integer> mTopic;
private MessageCallback callback;
/**
* 单列
* @return
*/
public static Mqtt getInstance() {
if(mMqttServer==null){
synchronized (Mqtt.class){
if (mMqttServer==null){
mMqttServer =new Mqtt();
}
}
}
return mMqttServer;
}
public void tryConnect(MqttConnectParam param,MessageCallback callback){
this.callback=callback;
if (!isConnected()){
L.i("连接MqttServer -------start");
connectMqttServer(param);
}else {
L.i("Mqtt已经连接");
}
}
/**
* 连接Mqtt服务器
*/
private synchronized void connectMqttServer(MqttConnectParam param){
try {
if (isConninging){
Log.i("TAG","Mqtt正在连接");
return;
}
mClient = new MqttAndroidClient(param.getmContext(), param.getmServerUrl(), param.getmId());
mClient.setCallback(this);
MqttConnectOptions conOpt = new MqttConnectOptions();
// 清除缓存
conOpt.setCleanSession(true);
// 设置超时时间，单位：秒
conOpt.setConnectionTimeout(5 );
// 心跳包发送间隔，单位：秒
conOpt.setKeepAliveInterval(5);
// 用户名
conOpt.setUserName(param.getmUser());
// 密码
conOpt.setPassword(param.getmPass().toCharArray());
isConninging=true;
mClient.connect(conOpt,null,this);
} catch (MqttException e) {
e.printStackTrace();
L.i("Mqtt连接失败");
}
}
/**
*
* @return 返回Mqtt是否连接
*/
private boolean isConnected(){
if (mClient==null)return false;//如果实例==null
if (!mClient.isConnected())return false;
return true;
}
/**
* 失去连接
* @param cause
*/
@Override
public void connectionLost(Throwable cause) {
isConninging=false;
if (callback!=null){callback.onConnectLost();}
L.i("连接丢失");
}
@Override
public void messageArrived(String topic, MqttMessage message) throws Exception {
if(callback!=null){callback.onMessage(topic,message);}
}
@Override
public void deliveryComplete(IMqttDeliveryToken token) {
}
@Override
public void onSuccess(IMqttToken asyncActionToken) {
isConninging=false;
if (callback!=null){callback.onConnected();}
try {
mClient.subscribe(getTops(),getQos());
} catch (MqttException e) {
e.printStackTrace();
}
L.i("Mqtt连接成功");
}
@Override
public void onFailure(IMqttToken asyncActionToken, Throwable exception) {
if(callback!=null){callback.onConnectFailure(asyncActionToken,exception);}
isConninging=false;
}
public Map<String, Integer> getmTopic() {
return mTopic;
}
public void setmTopic(Map<String, Integer> mTopic) {
this.mTopic = mTopic;
}
private String[] getTops(){
List<String> list =new ArrayList<>();
for (String key :mTopic.keySet()) {
list.add(key);
}
return list.toArray(new String[list.size()]);
}
private int[] getQos(){
List<Integer> list =new ArrayList<>();
int[] qos =new int[mTopic.size()];
for (String key :mTopic.keySet()) {
list.add(mTopic.get(key));
}
Integer[] tq=list.toArray(new Integer[list.size()]);
for (int i = 0; i < tq.length; i++) {
qos[i]=tq[i];
}
return qos;
}
interface MessageCallback{
void onMessage(String topic, MqttMessage message);
void onConnectFailure(IMqttToken asyncActionToken, Throwable exception);
void onConnected();
void onConnectLost();
}
}4:连接参数MqttConnectParam.java
public class MqttConnectParam {
private Context mContext;
private String mServerUrl;
private String mId;
private String mUser;
private String mPass;
public Context getmContext() {
return mContext;
}
public void setmContext(Context mContext) {
this.mContext = mContext;
}
public String getmServerUrl() {
return mServerUrl;
}
public void setmServerUrl(String mServerUrl) {
this.mServerUrl = mServerUrl;
}
public String getmId() {
return mId;
}
public void setmId(String mId) {
this.mId = mId;
}
public String getmUser() {
return mUser;
}
public void setmUser(String mUser) {
this.mUser = mUser;
}
public String getmPass() {
return mPass;
}
public void setmPass(String mPass) {
this.mPass = mPass;
}
public MqttConnectParam() {
}
public MqttConnectParam(Context mContext, String mServerUrl, String mId, String mUser, String mPass) {
this.mContext = mContext;
this.mServerUrl = mServerUrl;
this.mId = mId;
this.mUser = mUser;
this.mPass = mPass;
}
}八、注册成服务
1:编写Service
public class MqttServer extends Service implements Mqtt.MessageCallback {
public static final String SERVER_URL="tcp://xxxxxxxxx";//注意这里要修改Mqtt服务器得地址
public static final String MQTTUSERNAME="user";
public static final String MQTTPASSWORD="password";
public static final String MQTTID="id";
private Mqtt mMqtt;
private IMqttPushCallback mMegCallback;
private final IBinder mBinder = new MyBind();
@Override
public void onCreate() {
super.onCreate();
if (mMqtt==null){mMqtt=Mqtt.getInstance();}
}
@Override
public int onStartCommand(Intent intent, int flags, int startId) {
if (mMqtt==null){mMqtt=Mqtt.getInstance();}
mMqtt.setmTopic(getTopic());
mMqtt.tryConnect(getMqttConnectParam(),this);
return super.onStartCommand(intent, flags, startId);
}
@Override
public IBinder onBind(Intent intent) {
return mBinder;
}
private MqttConnectParam getMqttConnectParam(){
return new MqttConnectParam(this,SERVER_URL,MQTTID,MQTTUSERNAME,MQTTPASSWORD);
}
private Map<String,Integer> getTopic(){
Map<String,Integer> resultMap =new HashMap<>();
resultMap.put(App.ANDROID_PUSH_TOPIC,2);
return resultMap;
}
@Override
public void onMessage(String topic, MqttMessage message) {
NotificationState state =NotificationState.getInstance();
String msg =new String(message.getPayload());
if (msg.startsWith("\"")){msg =msg.substring(1, msg.length());}
if (msg.endsWith("\"")){msg =msg.substring(0, msg.length()-1);}
L.i(msg.startsWith("\""));
state.notification("通知",msg,null);
if (mMegCallback!=null){mMegCallback.onPushMessage(msg);}
}
@Override
public void onConnectFailure(IMqttToken asyncActionToken, Throwable exception) {
L.i("连接失败"+exception.getMessage());
}
@Override
public void onConnected() {
Toast.makeText(this, "连接成功", Toast.LENGTH_SHORT).show();
}
@Override
public void onConnectLost() {
}
public class MyBind extends Binder {
public void setCallbacl(IMqttPushCallback callbacl) {
mMegCallback=callbacl;
}
}
}2:启动服务
Intent intent =new Intent(getApplicationContext(),MqttServer.class); startService(intent);
