基于springboot跟七牛云整合的ueditor
技术：springboot2.0.5.RELEASE + maven3.0.5 + jdk1.8
概述
UEditor 是由百度「FEX前端研发团队」开发的所见即所得富文本web编辑器，具有轻量，可定制，注重用户体验等特点，开源基于MIT协议，允许自由使用和修改代码。开源的代码将图片上传到webapp下面的目录下，现整合springboot将图片上传到七牛云存储服务。
详细
一、运行效果
二、实现过程
1.下载编辑器
到官网下载 UEditor 最新版：[官网地址]

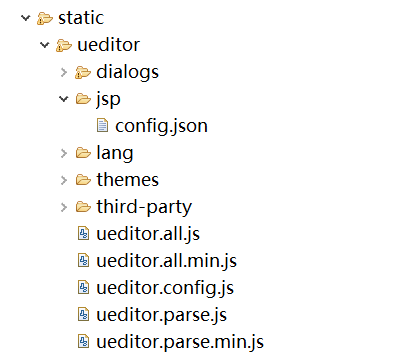

2.将ue的js跟css文件引入到springboot的resources下的static文件夹下，如下图所示:
3.在resources下的templates文件下创建ue.html，代码如下：
<!DOCTYPE html>
<html xmlns:th="http://www.springframework.org/schema/jdbc">
<head>
<meta charset="UTF-8"/>
<title>ueditor源码版本</title>
<style>
#editor {
width: 1024px;
height: 500px;
}
</style>
</head>
<body>
跳转：<a href="/ueNoResource">jar包引入百度编辑器源码版本</a><br>
<div id="editor" type="text/plain"></div>
<script th:src="@{/ueditor/ueditor.config.js}"></script>
<script th:src="@{/ueditor/ueditor.all.min.js}"></script>
<script th:src="@{/ueditor/lang/zh-cn/zh-cn.js}"></script>
<script>
UE.getEditor('editor');
</script>
</body>
</html>4.注册一个七牛云账号

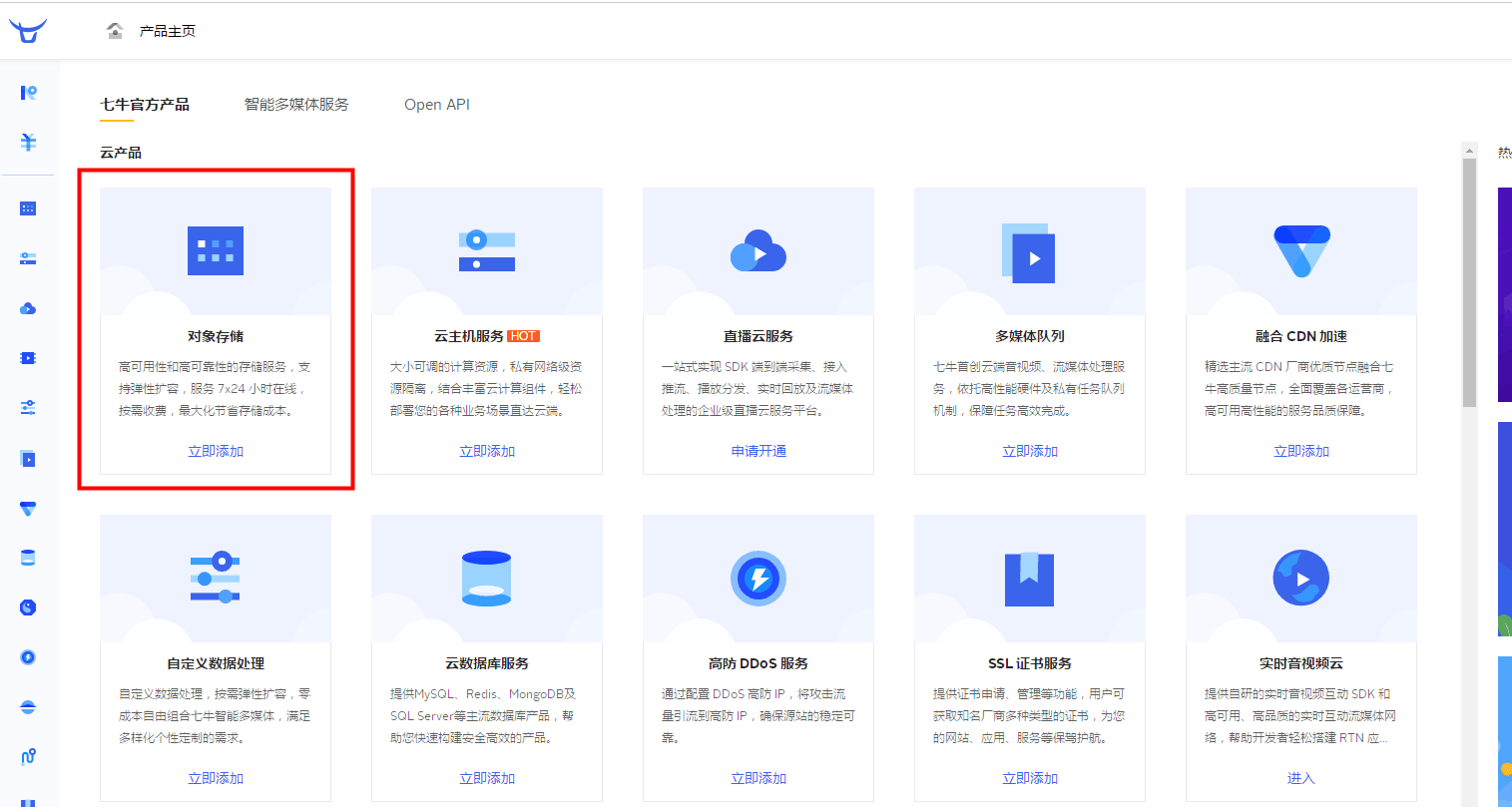

登录到控制台创建一个云存储服务

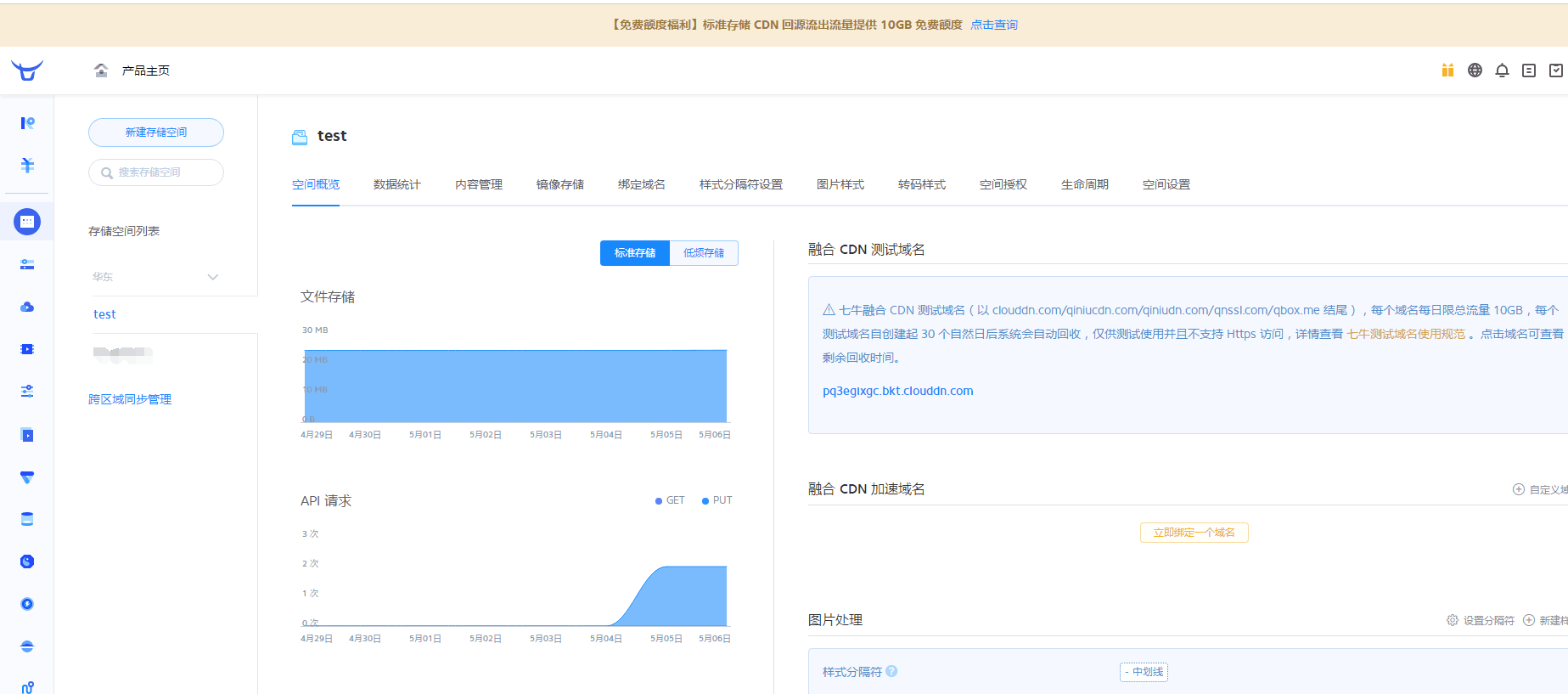

新建一个test的Bucket识别符的存储空间名称

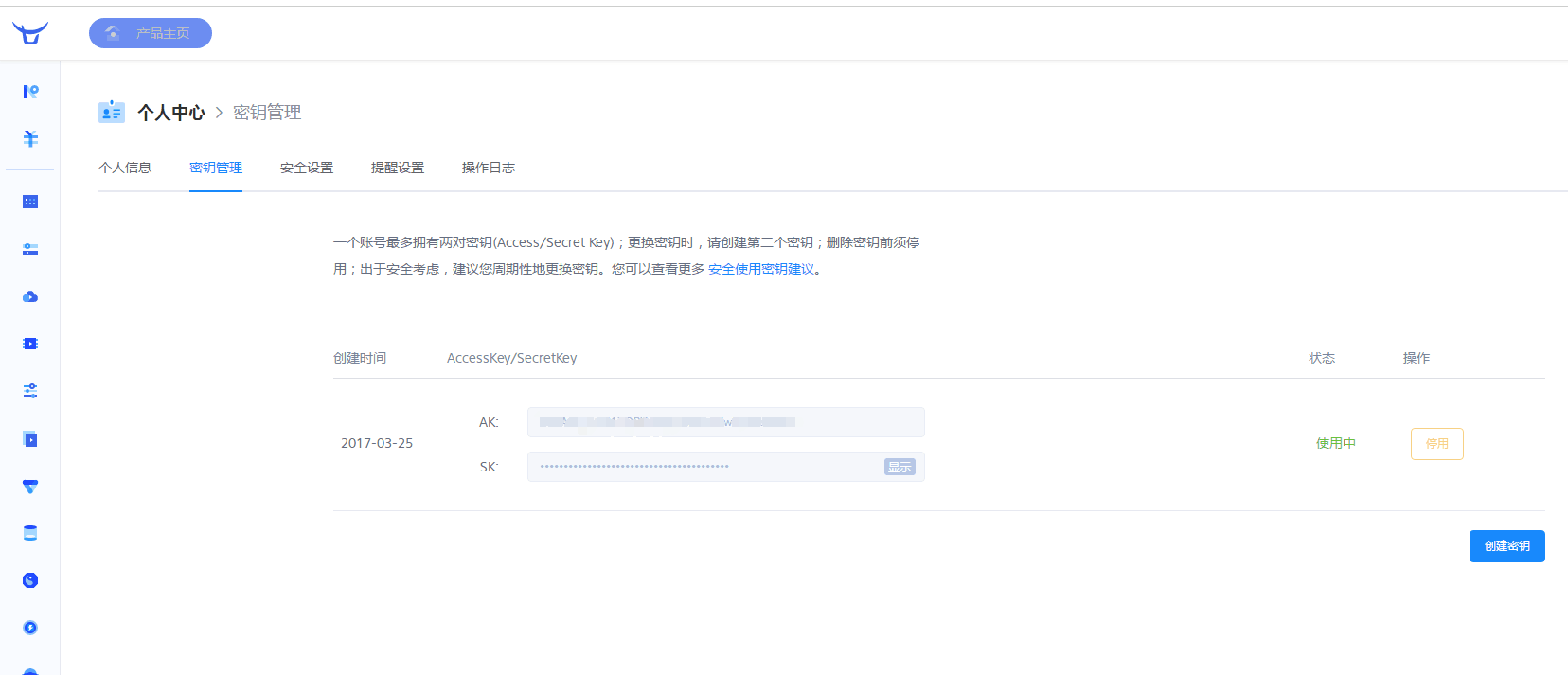

在个人中心创建密钥：

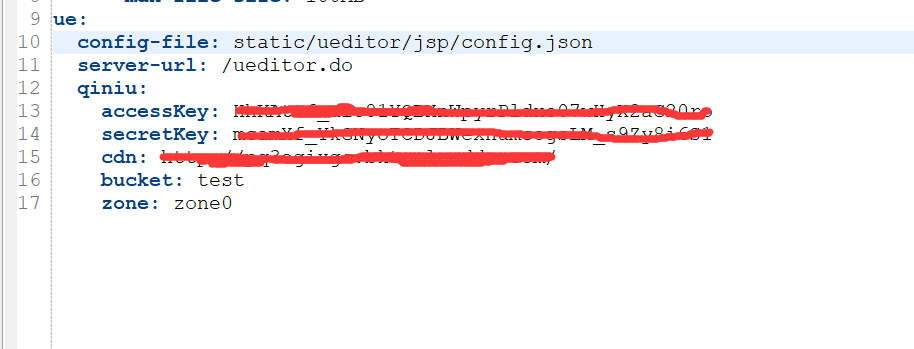

5.在application.yml配置七牛云的相关配置
6.创建读取七牛云配置的类，代码如下：
@ConfigurationProperties(prefix = "ue", ignoreInvalidFields = true)
public class UdeitorProperties {
/**
* config.json 路径
*/
private String configFile;
/**
* ueditor服务器统一请求接口路径
*/
private String serverUrl;
private Map<String, String> qiniu;
public String getConfigFile() {
return configFile;
}
public void setConfigFile(String configFile) {
this.configFile = configFile;
}
public String getServerUrl() {
return serverUrl;
}
public void setServerUrl(String serverUrl) {
this.serverUrl = serverUrl;
}
public Map<String, String> getQiniu() {
return qiniu;
}
public void setQiniu(Map<String, String> qiniu) {
this.qiniu = qiniu;
}
}7.创建七牛云上传图片工具类QiniuUtils
public class QiniuUtils {
public static UdeitorProperties properties;
/**
* 文件上传
*
* @param file 上传的文件
* @param fileName 自定义文件名
* @return java.lang.String
*/
public static String upload(MultipartFile file, String fileName) {
String zoneStr = properties.getQiniu().get("zone");
Zone zone = getByName(zoneStr);
Configuration cfg = new Configuration(zone);
UploadManager uploadManager = new UploadManager(cfg);
String accessKey = properties.getQiniu().get("accessKey");
String secretKey = properties.getQiniu().get("secretKey");
String bucket = properties.getQiniu().get("bucket");
try {
ByteArrayInputStream byteInputStream = new ByteArrayInputStream(file.getBytes());
Auth auth = Auth.create(accessKey, secretKey);
String upToken = auth.uploadToken(bucket);
try {
Response response = uploadManager.put(byteInputStream, fileName, upToken, null, null);
//解析上传成功的结果
DefaultPutRet putRet = new Gson().fromJson(response.bodyString(), DefaultPutRet.class);
return properties.getQiniu().get("cdn") + putRet.key;
} catch (QiniuException ex) {
return null;
}
} catch (IOException e) {
return null;
}
}
/**
* base64图片上传
*
* @param content 图片内筒
* @param fileName 自定义文件名
* @return java.lang.String
*/
public static String upload(String content, String fileName) {
String zoneStr = properties.getQiniu().get("zone");
Zone zone = getByName(zoneStr);
String accessKey = properties.getQiniu().get("accessKey");
String secretKey = properties.getQiniu().get("secretKey");
String bucket = properties.getQiniu().get("bucket");
String url = zone.getUpBackupHttp(new ZoneReqInfo(accessKey, bucket)) + "/putb64/" + "-1" + "/key/" + UrlSafeBase64.encodeToString(fileName);
Auth auth = Auth.create(accessKey, secretKey);
String upToken = auth.uploadToken(bucket);
RequestBody rb = RequestBody.create(null, content);
Request request = new Request.Builder().
url(url).
addHeader("Content-Type", "application/octet-stream")
.addHeader("Authorization", "UpToken " + upToken)
.post(rb).build();
OkHttpClient client = new OkHttpClient();
okhttp3.Response response = null;
try {
response = client.newCall(request).execute();
} catch (IOException e) {
e.printStackTrace();
}
DefaultPutRet putRet = new Gson().fromJson(response.body().charStream(), DefaultPutRet.class);
if (putRet.key == null) {
return null;
}
return properties.getQiniu().get("cdn") + putRet.key;
}
/**
* @param prefix 文件前缀
* @param index 从第几个开始
* @param size 返回条数
* @param total 总条数
* @return 文件列表
*/
public static List<String> listFile(String prefix, int index, int size, Total total) {
// 构造一个带指定Zone对象的配置类
Configuration cfg = new Configuration(Zone.zone0());
String accessKey = properties.getQiniu().get("accessKey");
String secretKey = properties.getQiniu().get("secretKey");
String bucket = properties.getQiniu().get("bucket");
Auth auth = Auth.create(accessKey, secretKey);
BucketManager bucketManager = new BucketManager(auth, cfg);
// 每次迭代的长度限制，最大1000，推荐值 1000
int limit = 1000;
// 指定目录分隔符，列出所有公共前缀（模拟列出目录效果）。缺省值为空字符串
String delimiter = "";
// 列举空间文件列表
BucketManager.FileListIterator fileListIterator = bucketManager.createFileListIterator(bucket, prefix, limit, delimiter);
FileInfo[] items = null;
// 只列举最近的1000个文件多了也不利于展示
if (fileListIterator.hasNext()) {
//处理获取的file list结果
items = fileListIterator.next();
}
if (items == null) {
return null;
}
total.setTotal(items.length);
if (index < 0 || index > items.length) {
return null;
}
return Arrays.stream(items).skip(index).limit(size).map(fileInfo -> properties.getQiniu().get("cdn") + fileInfo.key).collect(Collectors.toList());
}
/**
* 根据名称获取对应的上传区域
*
* @param name zone name
* @return com.qiniu.common.Zone
*/
static Zone getByName(String name) {
Zone zone = null;
switch (name) {
case "zone0":
zone = Zone.zone0();
break;
case "zone1":
zone = Zone.zone1();
break;
case "zone2":
zone = Zone.zone2();
break;
case "zoneNa0":
zone = Zone.zoneNa0();
break;
case "zoneAs0":
zone = Zone.zoneAs0();
break;
default:
throw new RuntimeException("百度编辑七牛云zone配置错误，https://developer.qiniu.com/kodo/sdk/1239/java#server-upload");
}
return zone;
}
}8.修改ueditor上传图片的java源代码为七牛云方式
public final class Base64Uploader {
public static State save(String content, Map<String, Object> conf) {
byte[] data = decode(content);
long maxSize = ((Long) conf.get("maxSize")).longValue();
if (!validSize(data, maxSize)) {
return new BaseState(false, AppInfo.MAX_SIZE);
}
String suffix = FileType.getSuffix("JPG");
String savePath = PathFormat.parse((String) conf.get("savePath"),
(String) conf.get("filename"));
savePath = savePath + suffix;
String url = QiniuUtils.upload(content, savePath);
if (url == null) {
return new BaseState(false, AppInfo.FAILED_CREATE_FILE);
}
State storageState = new BaseState();
storageState.putInfo("url", url);
storageState.putInfo("type", suffix);
storageState.putInfo("original", "");
return storageState;
}
private static byte[] decode(String content) {
return Base64.decodeBase64(content);
}
private static boolean validSize(byte[] data, long length) {
return data.length <= length;
}
}public class BinaryUploader {
public static final State save(HttpServletRequest request,
Map<String, Object> conf) {
if (!ServletFileUpload.isMultipartContent(request)) {
return new BaseState(false, AppInfo.NOT_MULTIPART_CONTENT);
}
MultipartHttpServletRequest mRequest = (MultipartHttpServletRequest) request;
String fileName = (String) conf.get("fieldName");
if (fileName == null) {
return new BaseState(false, AppInfo.NOTFOUND_UPLOAD_DATA);
}
MultipartFile file = mRequest.getFile(fileName);
if (file.isEmpty()) {
return new BaseState(false, AppInfo.NOTFOUND_UPLOAD_DATA);
}
String savePath = (String) conf.get("savePath");
String originFileName = file.getOriginalFilename();
String suffix = FileType.getSuffixByFilename(originFileName);
originFileName = originFileName.substring(0,
originFileName.length() - suffix.length());
savePath = savePath + suffix;
savePath = PathFormat.parse(savePath, originFileName);
long maxSize = ((Long) conf.get("maxSize")).longValue();
if (maxSize < file.getSize()) {
return new BaseState(false, AppInfo.MAX_SIZE);
}
if (!validType(suffix, (String[]) conf.get("allowFiles"))) {
return new BaseState(false, AppInfo.NOT_ALLOW_FILE_TYPE);
}
String url = QiniuUtils.upload(file, savePath);
if (url == null) {
return new BaseState(false, AppInfo.FAILED_CREATE_FILE);
}
State storageState = new BaseState();
storageState.putInfo("url", url);
storageState.putInfo("type", suffix);
storageState.putInfo("original", originFileName + suffix);
return storageState;
}
private static boolean validType(String type, String[] allowTypes) {
List<String> list = Arrays.asList(allowTypes);
return list.contains(type);
}

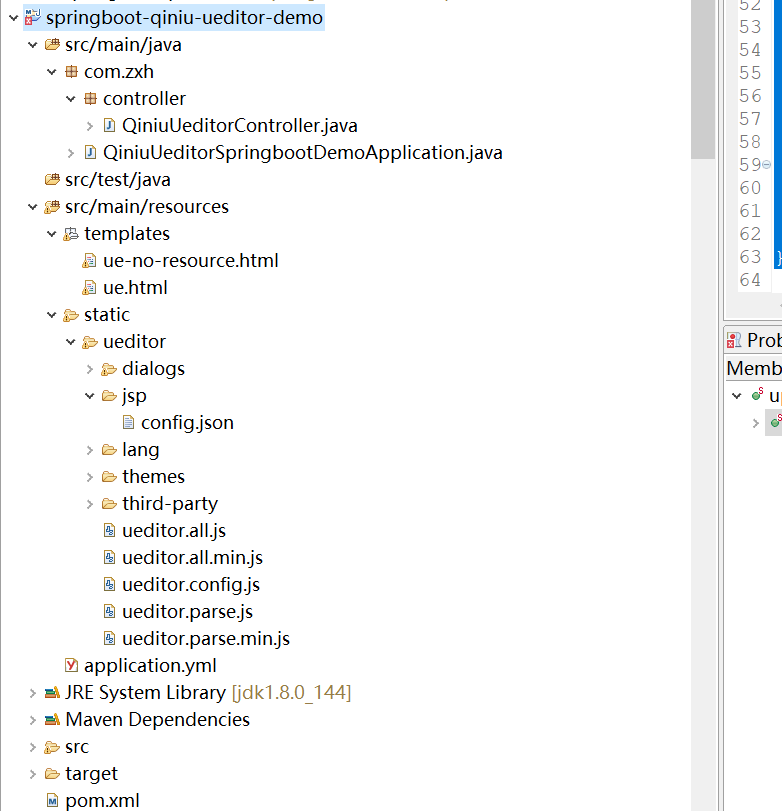

}三、项目结构图
四、补充
ueditor是开源可自行修改源码，可以将图片存储在绝对路径、七牛云存储、阿里云存储服务等等，是一个很好用的富文本编辑框。
