ESP8266-NONOS_SDK的MQTT对接Onenet平台
概述
详细
概述
物联网时代来临，仅仅知道TCP、UDP、HTTP等这些是不行的，最主要核心的协议MQTT已经渐渐登场了！在原本自己搭建的MQTT服务器之后，由于设备多，故而服务器频临崩溃，所哟不得不依靠强大的ONENET平台的MQTT，毫无压力！然后在最初之时，ONENET论坛里很难找到关于MQTT正确连接的协议信息，所以自己摸索，编写，测试等各个环节，终于成功对接MQTT了！下面我来简单介绍这个简单的Demo吧！
详细

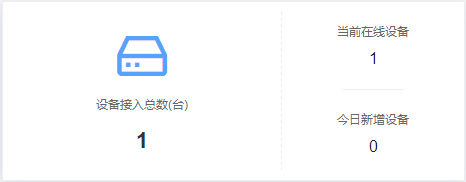

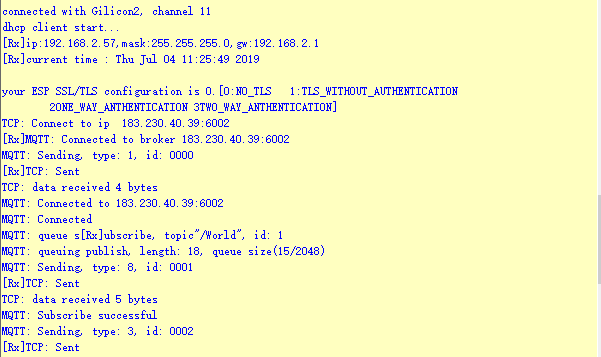

一、运行效果
二、实现过程
①、成为ONENET平台的开发者
这个具体的不做细分介绍，我给你个链接，自己去注册下吧，超简单！ https://jingyan.baidu.com/article/0a52e3f4efe75bbf62ed7201.html https://open.iot.10086.cn/doc/book/easy-manual/login.html
②、获取MQTT相关的信息
主要需要得到以下几个信息：

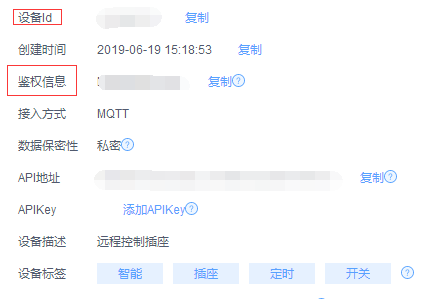

设备ID与鉴权信息；
在“产品开发”左侧栏目点击“设备列表”，点击页面里的“详情”就能看打设备id和鉴权信息。

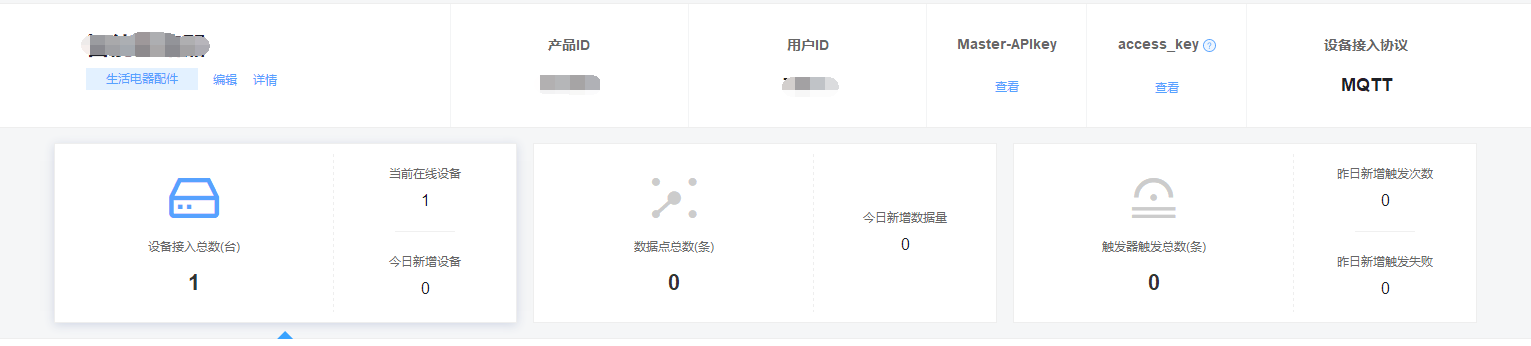

产品ID。
③、代码
主要的MQTT的配置代码如下：
#ifndef __MQTT_CONFIG_H__
#define __MQTT_CONFIG_H__
typedef enum{
NO_TLS = 0, // 0: disable SSL/TLS, there must be no certificate verify between MQTT server and ESP8266
TLS_WITHOUT_AUTHENTICATION = 1, // 1: enable SSL/TLS, but there is no a certificate verify
ONE_WAY_ANTHENTICATION = 2, // 2: enable SSL/TLS, ESP8266 would verify the SSL server certificate at the same time
TWO_WAY_ANTHENTICATION = 3, // 3: enable SSL/TLS, ESP8266 would verify the SSL server certificate and SSL server would verify ESP8266 certificate
}TLS_LEVEL;
/***********************************************************************************************************************/
#define CFG_HOLDER 0x00FF55A5 /* Change this value to load default configurations */
#define MQTT_HOST "183.230.40.39" // "183.230.40.39" 是ONENET平台的MQTT统一的IP
#define MQTT_PORT 6002 // ONENET的MQTT默认的端口
#define MQTT_CLIENT_ID "填设备Id" // the ID of yourself, any string is OK,client would use this ID register itself to MQTT server
#define MQTT_USER "填产品ID" // your MQTT login name, if MQTT server allow anonymous login,any string is OK, otherwise, please input valid login name which you had registered
#define MQTT_PASS "鉴权信息" // you MQTT login password, same as above
#define STA_SSID "your AP/router SSID" // your AP/router SSID to config your device networking
#define STA_PASS "your AP/router password" // your AP/router password
#define DEFAULT_SECURITY NO_TLS // very important: you must config DEFAULT_SECURITY for SSL/TLS
#define CA_CERT_FLASH_ADDRESS 0x77 // CA certificate address in flash to read, 0x77 means address 0x77000
#define CLIENT_CERT_FLASH_ADDRESS 0x78 // client certificate and private key address in flash to read, 0x78 means address 0x78000
/***********************************************************************************************************************/
/*Please Keep the following configuration if you have no very deep understanding of ESP SSL/TLS*/
#define CFG_LOCATION 0x79 /* Please don't change or if you know what you doing */
#define MQTT_BUF_SIZE 1024
#define MQTT_KEEPALIVE 120 /*second*/
#define MQTT_RECONNECT_TIMEOUT 5 /*second*/
#define MQTT_SSL_ENABLE //* Please don't change or if you know what you doing */
#define STA_TYPE AUTH_WPA2_PSK
#define QUEUE_BUFFER_SIZE 2048
#define PROTOCOL_NAMEv311 /*MQTT version 3.1 compatible with Mosquitto v0.15*/
#endif运行主程序代码：
void user_init(void)
{
uart_init(BIT_RATE_115200, BIT_RATE_115200);
os_delay_us(60000);
CFG_Load();
MQTT_InitConnection(&mqttClient, sysCfg.mqtt_host, sysCfg.mqtt_port, sysCfg.security);
//MQTT_InitConnection(&mqttClient, "183.230.40.39", 6002, 0);
MQTT_InitClient(&mqttClient, sysCfg.device_id, sysCfg.mqtt_user, sysCfg.mqtt_pass, sysCfg.mqtt_keepalive, 1);
//MQTT_InitClient(&mqttClient, "client_id", "user", "pass", 120, 1);
MQTT_InitLWT(&mqttClient, "/lwt", "offline", 0, 0);
MQTT_OnConnected(&mqttClient, mqttConnectedCb);
MQTT_OnDisconnected(&mqttClient, mqttDisconnectedCb);
MQTT_OnPublished(&mqttClient, mqttPublishedCb);
MQTT_OnData(&mqttClient, mqttDataCb);
WIFI_Connect("填WIFI路由器名称", "填WIFI密码", wifiConnectCb); //连接WIFI
INFO("\r\nSystem started ...\r\n");
}
④、在eclipse-cywbin编译该源码，产生固件在bin文件里，烧录。
烧录方法： boot_v1.7.bin 0x00000 user1.4096.new.4.bin 0x01000 esp_init_data_default_v05.bin 0x3FC000 blank.bin 0x3FE000
如图：

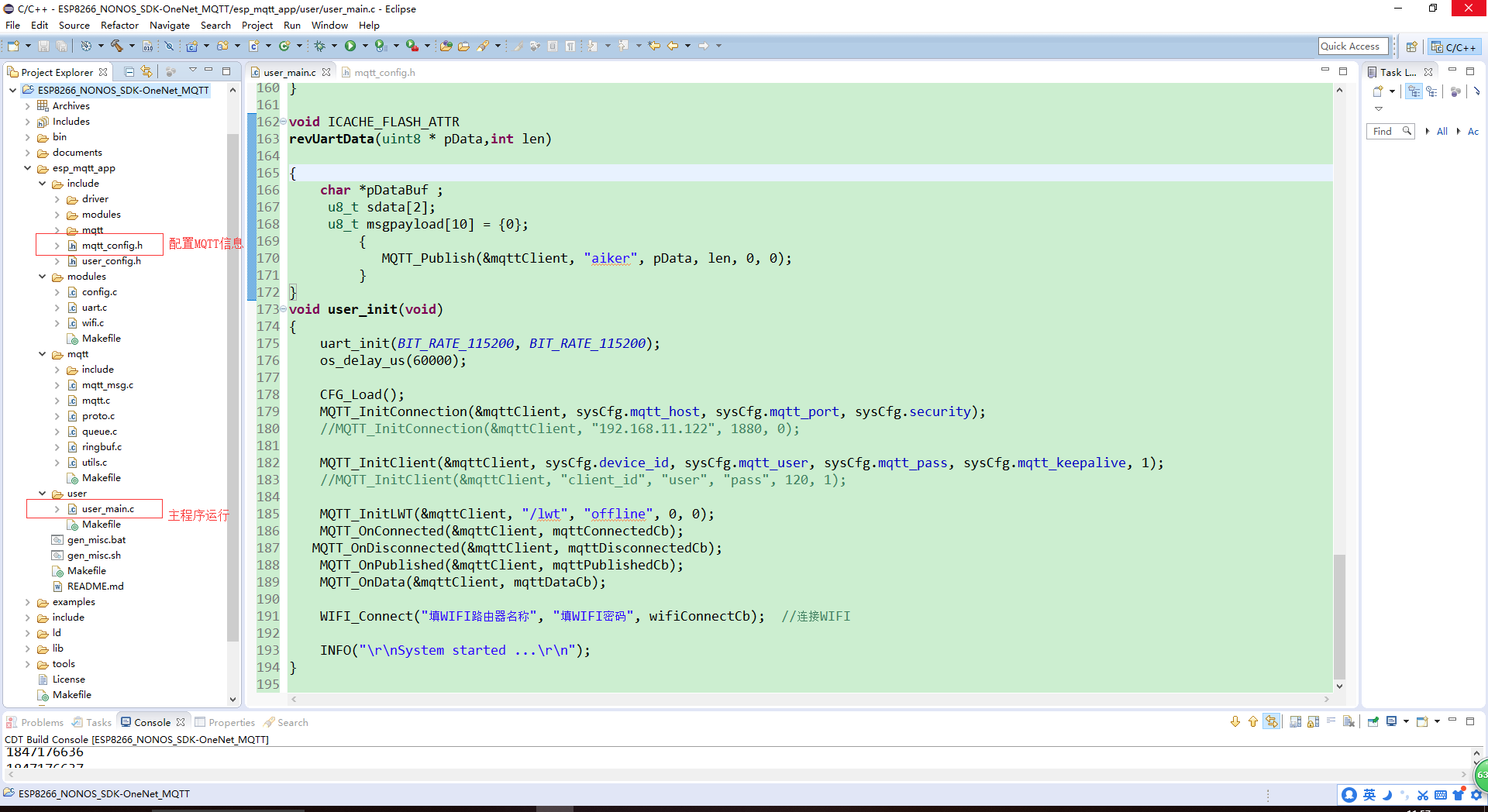

三、项目结构图
四、补充
该程序只是简单的MQTT对接Onenet平台，具体后面的订阅和主题，以及一键配网，还有json协议等我会再详细出一个demo出来的！
注意：ESP8266-12F或者ESP8266-12E的都行，其他的板子需要改变flash的大小。
