国际跳棋人机对战
技术：Java+swing
概述
国际跳棋（英语：checkers或draughts）是一种两人棋盘游戏。玩家的棋子都是沿斜角走的。棋子可跳过敌方的棋子并吃掉它。本国际跳棋程序使用蒙特卡洛树搜索算法完成AI自动下棋的功能, 实现人机对战，根据国际跳棋的规则实现兵棋和王棋的走棋、跳棋和连跳，判断棋局的输赢或死棋,。
详细
概述
国际跳棋是一种古老的棋类游戏。远在古埃及法老时期就已存在，现代国际跳棋是在12世纪定型的。 国际跳棋是由各国的民族跳棋演变而来。其历史源远流长。据史学家研究，跳棋起源于古埃及、古罗马、古希腊等一些国家和地区。
在大多数国家国际跳棋为64格，规则有所不同，有巴西规则、俄罗斯规则等。但国际比赛采用的棋盘为100格，此外加拿大国际跳棋采用12*12即144格的棋盘，棋盘越大，变化越丰富，难度也相应增大。如图所示，国际跳棋棋子是圆柱型的，黑白棋子各二十枚，棋子表面上有罗纹，这种棋子叫“兵”，把兵翻过来（或两兵叠起来）就是“王”。由于棋子只能在深色格子中行走，因此可以将这些格子依次编号，方便记录棋局。对于100格国际跳棋，开局时，黑色棋子分布在1至20格，白色棋子分布在31至50格，和国际象棋类似，白棋先行。
在人与人对弈的国际比赛中采用的规则相对复杂，特别是对和局的判定，而计算机博弈中采用的规则做了一些简化。而且64格的规则与100格基本一致，只是棋子数目不同。另外在国内的计算机博弈赛中,国际跳棋和围棋一样也是黑方先行。
一、走法规则
所有棋子均在黑色或指定颜色格子中行走。
①、兵的走法
只能向前斜走一格，不能后退，显然靠边的兵只有一个方向可走，而居于中部的兵有两个方向可走。
②、兵的跳吃
黑白两枚棋子紧连在一条斜线上，如轮到某一方行棋时，对方棋子的前后正好有一空棋位能跳过对方的棋子，那么就可以跳过对方的棋子把被跳过的棋子吃掉，并从棋盘上取下。
③、兵的连跳
兵的连跳是是跳过对方的棋子以后，又遇上可以跳过的棋子，那么就可以连续跳过去，把被跳过的棋子吃掉，并且从棋盘上一次取下。兵的走法是不能后退，但是遇到跳吃或连续跳吃时，可以退跳。
④、兵的升变
对局开始前双方在棋盘上摆的棋子都是兵，兵在对局过程中，走到或跳到对方底线停下，即可升变为“王”刚升变的王要到下一步才能享有王的走法的权利。兵在对局过程中，走到或跳到对方底线没停下（即中途经过），不可以升变为“王”。
⑤、王的走法
王在其位于的任何一条斜线上均可进退，并且不限格数，除非遇到其它棋子。
⑥、王的跳吃
王的跳吃是王与对方棋子遇在同一斜线上，不管相距有几个空棋位，且对方棋子后也有空棋位，那么王棋就可以跳过去吃掉对方的棋子，而且跳吃时要跳到对方棋子后面的一个空位里。因此如果对方棋子有两个或两个以上相连，王棋是无法将它们直接吃掉的。
⑦、王的连跳
王的连跳与兵连跳的情况基本上相同，只是不限距离。
所有棋子均在黑色或指定颜色格子中行走。
二、吃子规定
①、有吃必吃
凡有跳吃或连跳机会时，不管对自己是否有利都必须连续跳吃或跳过，尤其是王。如果有连跳的局面，必须将对方所有的棋子跳完，直到无可再跳时才能停下。对于兵来说，遇到连续跳吃，即使吃到底也不能停下升王，而需要将所有的跳着走完，这就是“吃到底不得停”。
②、有吃多吃
如果有多条路线或2枚棋子都能吃对方的棋子，那么不管是否对自己有利，必须选择吃多的路线和棋子。例如：同时在两条路线上可以吃对方的棋子，一条路线上能吃3枚棋子，另一条路线上能吃2枚棋子，必须选择跳吃3枚棋子的路线。如果两条路线吃掉棋子的数目相等，则可以任选一种吃法。
③、不得重吃重跳
在跳吃过程中，被跳过的对方棋子在没有跳完之前不能拿下棋盘，这些棋子都只能被跳过一次，即已经跳过的棋子会对后面的跳吃造成屏障。在比赛中，这一规则通常被利用以形成所谓的“土耳其打击”。
三、棋局结束判断
①、所有的棋子都被对方吃掉为负棋。
②、残留在棋盘上的棋子，被对方封锁，无子可动为负棋。
详细

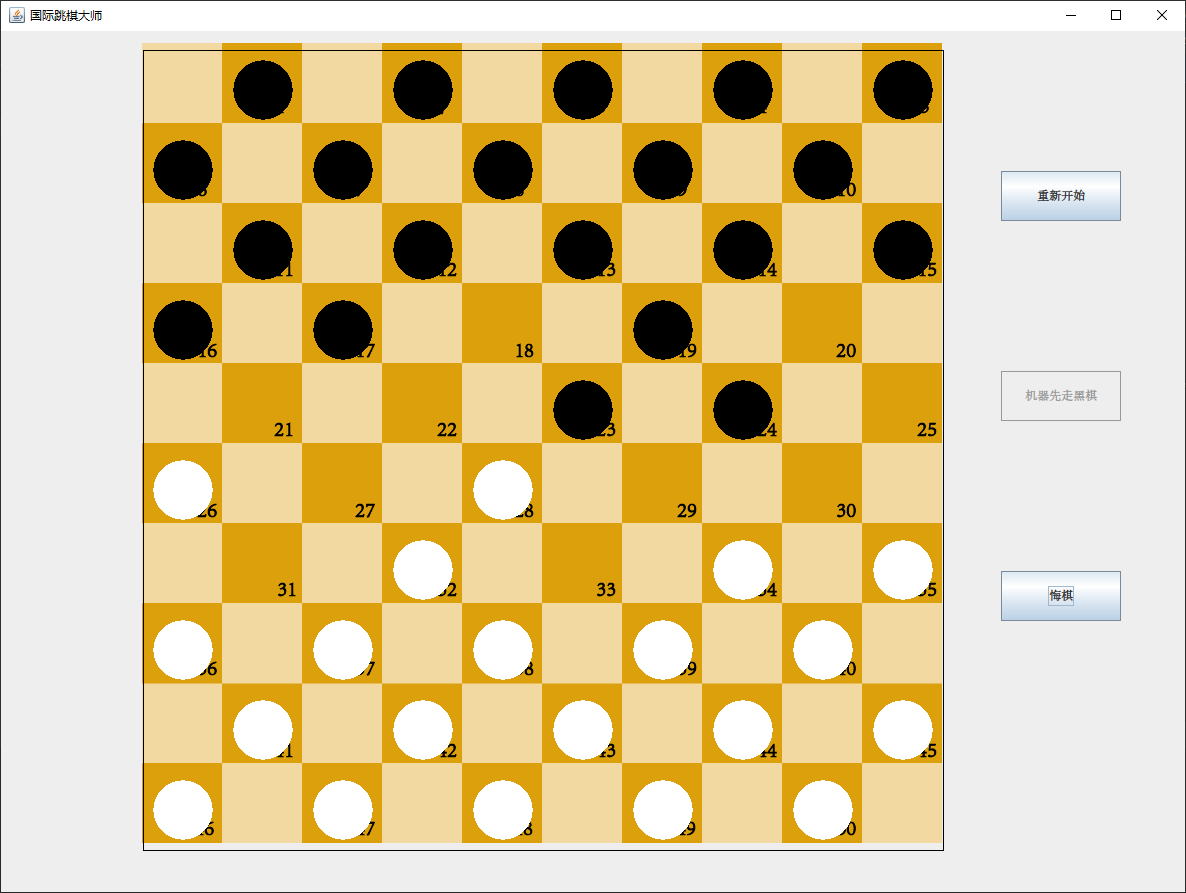

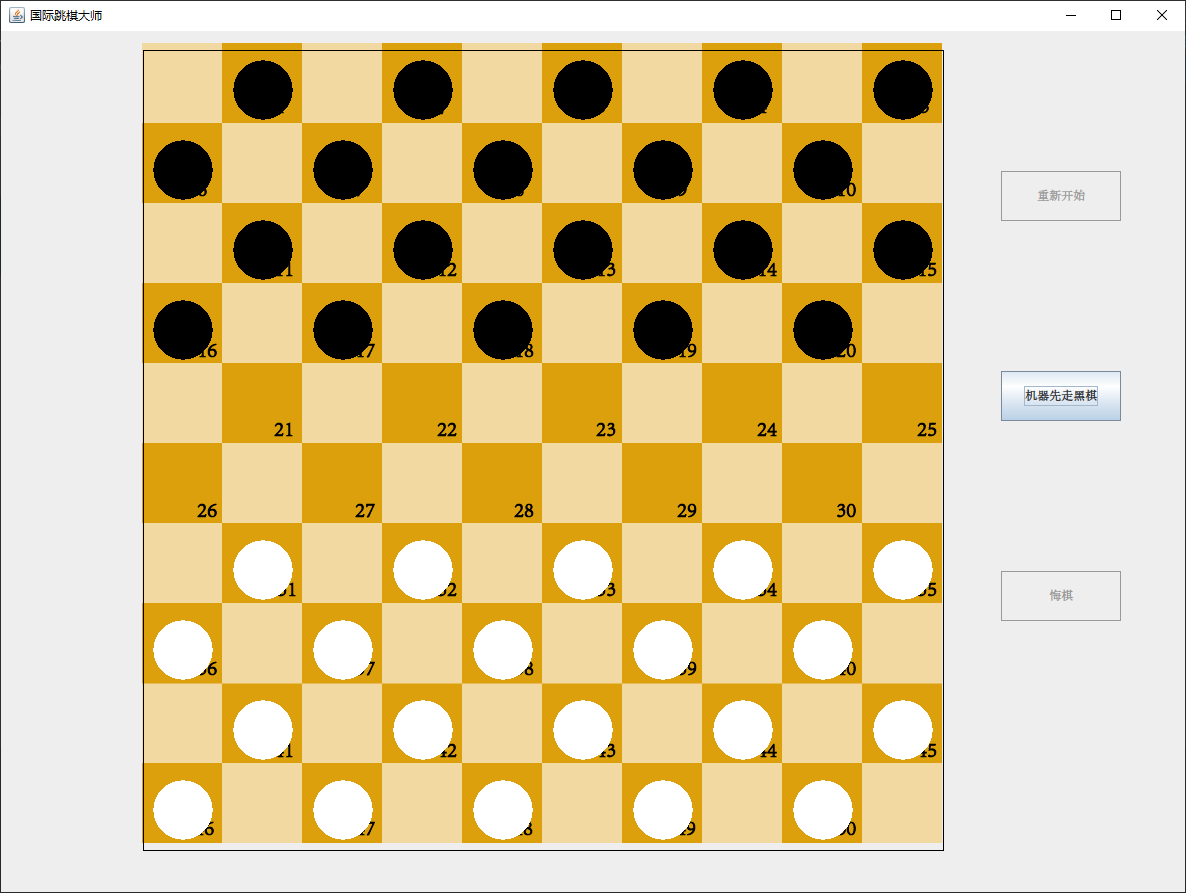

一、运行效果
二、人机对战算法
本程序使用了蒙特卡洛树搜索树算法来进行判断对战, 其实原理很简单：
蒙特卡洛树搜索的每个循环包括四个步骤：
选择（Selection）：从根节点R开始，选择连续的子节点向下至叶子节点L。后面给出了一种选择子节点的方法，让游戏树向最优的方向扩展，这是蒙特卡洛树搜索的精要所在。
扩展（Expansion）：除非任意一方的输赢使得游戏在L结束，否则创建一个或多个子节点并选取其中一个节点C。
仿真（Simulation）：在从节点C开始，用随机策略进行游戏，又称为playout或者rollout。
反向传播（Backpropagation）：使用随机游戏的结果，更新从C到R的路径上的节点信息。
每一个节点的内容代表胜利次数/游戏次数
三、主要的模块
棋盘界面模块（myFrame\MainFrame.java）
package myFrame;
import java.awt.*;
import java.awt.event.*;
import java.util.concurrent.*;
import javax.swing.*;
import javax.swing.event.MouseInputAdapter;
import monteCarloTreeSearch.*;
import moveWays.*;
import searchTree.*;
/**
*
* @author 名字
* @邮箱：mail@company.com
* @修改日期：2020.11.11
* @描述：国际跳棋主窗口
*
*/
@SuppressWarnings("serial")
public class MainFrame extends JFrame implements Runnable {
private int x;// 鼠标点击坐标
private int y;
private static int step = 0; // 记录走了几回合
private static boolean enemyLaterIsEmpty;// 敌方棋子后有空位置
private static boolean own = false;
private static ImageIcon mainFrameIcon;// 游戏窗口背景图片
private static JLabel back_Label;
private static JButton startButton = new JButton();
private static JButton firstMoveButton = new JButton("机器先走黑棋");
private static JButton regretChessButton = new JButton("悔棋");
Scan scan = new Scan();
private JLabel chessPic; //图片，用于拖动
private Point point = null; //坐标点
private static boolean chessDisplay = false;
private static boolean willDisplayChess = false;
private static boolean willNotDisplayChess = false;
private MainFrame that;
private JPanel panel;
static {// 加载背景图片
mainFrameIcon = new ImageIcon("png/qipan.png");
}
public static MonteCarloPlayer player1, player2;
public static Field game_field;
private Image iBuffer = null;
private Graphics gBuffer;
private ToolTip tip = new ToolTip();
//双缓冲绘图
@Override
public void update(Graphics g) {
if (iBuffer == null) {
iBuffer = createImage(this.getSize().width, this.getSize().height);
gBuffer = iBuffer.getGraphics();
}
gBuffer.setColor(getBackground());
gBuffer.fillRect(0, 0, this.getSize().width, this.getSize().height);
paint(g);
g.drawImage(iBuffer, 0, 0, this);
}
public MainFrame() {
super("国际跳棋大师");
that = this;
setLayout(null);
chessPic = new JLabel(new ImageIcon("png\\chess_black.png"));
add(chessPic);
// 写入初始信息
ShowInformation.writeInitInformation();
// 先建的组件，在上面
init();// 初始化容器
InitData.initChess();// 初始化棋盘坐标
game_field = new Field();
player1 = new MonteCarloPlayer(Field.WHITE, game_field, 30);
player2 = new MonteCarloPlayer(Field.BLACK, game_field, 40);
System.out.println("start of game");
game_field.display();
action();
setVisible(true);
// 创建固定大小的线程池
ExecutorService executor = Executors.newFixedThreadPool(1);
// 提交机器和人交替走棋的任务
executor.submit(this);
tip.setToolTip(new ImageIcon("png\\chess_black.png"),"------轮到黑方走棋------");
}
/**
* 描述：初始化
*/
public void init() {
setLayout(null);
setName("国际跳棋");
setSize(1200, 900);
setLocation(300, 30);
startButton = new JButton("重新开始");
startButton.setBounds(1000, 140, 120, 50);
startButton.setEnabled(false);
regretChessButton.setEnabled(false);
add(startButton);
firstMoveButton.setBounds(1000, 340, 120, 50);
add(firstMoveButton);
regretChessButton.setBounds(1000, 540, 120, 50);
add(regretChessButton);
// 加载背景图片
back_Label = new JLabel(mainFrameIcon);
back_Label.setBounds(0, 0, 1082, 824);
add(back_Label);
panel = new JPanel();
panel.setLayout(null);
panel.setBounds(0, 0, 990, 900);
// panel.setBackground(Color.RED);
panel.addMouseListener(new MyMouse());
add(panel);// 面板和图片不能同时存在吗？
//图标显示为棋子时的事件
ChessMouseInputAdapter listener = new ChessMouseInputAdapter(); //鼠标事件处理
chessPic.addMouseListener(listener); //增加标签的鼠标事件处理
chessPic.addMouseMotionListener(listener);
point = new Point(199, 161);
setDefaultCloseOperation(EXIT_ON_CLOSE);
setVisible(true);
}
// 重新开始，刷新数据
public void action() {
startButton.addMouseListener(new MouseAdapter() {
@Override
public void mouseClicked(MouseEvent e) {
chessPic.setIcon(new ImageIcon("png\\chess_black.png"));
InitData.initChessData();
game_field = new Field();
player1 = new MonteCarloPlayer(Field.WHITE, game_field, 30);
player2 = new MonteCarloPlayer(Field.BLACK, game_field, 40);
System.out.println("start of game");
game_field.display();
firstMoveButton.setEnabled(true);
if (isOwn()) {
setOwn(false);
}
repaint();// 刷新
}
});
firstMoveButton.addMouseListener(new MouseAdapter() {
@Override
public void mouseClicked(MouseEvent e) {
own = true;
repaint();
tip.setToolTip(new ImageIcon("png\\chess_black.png"), "机器执黑棋正在思考......");
SwingUtilities.invokeLater(() -> {
SwingUtilities.invokeLater(() -> {
scan.scan();
scan.printWeight();
scan.clearWeight();
CanEvenJump.canEvenJump(); // 测试
CanEvenJump.bestChess();// 测试
try {
AI.ai();
} catch (Exception e1) {
// TODO Auto-generated catch block
e1.printStackTrace();
}
InitData.printChessData();
CanEvenJump.canEvenJump(); // 测试
CanEvenJump.bestChess();// 测试
//记录棋盘
GameRecord.backupGame();
repaint();
});
});
chessPic.setIcon(new ImageIcon("png\\chess_white.png"));
regretChessButton.setEnabled(true);
startButton.setEnabled(true);
firstMoveButton.setEnabled(false);
}
});
regretChessButton.addMouseListener(new MouseAdapter() {
@Override
public void mouseClicked(MouseEvent e) {
int result = JOptionPane.showConfirmDialog(null, "是否需要悔棋？", "确认悔棋", JOptionPane.YES_NO_OPTION);
if (result == 0) {// 确认悔棋
try {
if(GameRecord.getGameRecordList().size()>1){
GameRecord.renewGame();
}
else{
GameRecord.getGameRecordList().clear();
chessPic.setIcon(new ImageIcon("png\\chess_black.png"));
InitData.initChessData();
game_field = new Field();
player1 = new MonteCarloPlayer(Field.WHITE, game_field, 30);
player2 = new MonteCarloPlayer(Field.BLACK, game_field, 40);
System.out.println("start of game");
game_field.display();
startButton.setEnabled(false);
firstMoveButton.setEnabled(true);
regretChessButton.setEnabled(false);
if (isOwn()) {
setOwn(false);
}
repaint();// 刷新
}
InitData.printChessData();
repaint();
game_field.display();
} catch (Exception exception) {
exception.printStackTrace();
}
}
}
});
}
/**
* 描述：画棋盘、棋子
*
* @param g
*/
@Override
public void paint(Graphics g) {
super.paint(g);
paint0(g);
paint1(g);
}
public void paint0(Graphics g) {
super.paint(g);
g.drawLine(150, 50, 950, 50);
g.drawLine(150, 850, 950, 850);
g.drawLine(150, 50, 150, 850);
g.drawLine(950, 50, 950, 850);
}
/**
* 描述：棋子
*
* @param
*/
public static void paint1(Graphics g) {
for (int i = 0; i < 10; i++) {
for (int j = 0; j < 10; j++) {
if (Packaging.getChessData(i, j) == Packaging.getBlackChess()) {
g.setColor(Color.BLACK);
g.fillOval(150 + 10 + j * 80, 50 + 10 + i * 80, 60, 60);
}
if (Packaging.getChessData(i, j) == Packaging.getWhiteChess()) {
g.setColor(Color.WHITE);
g.fillOval(150 + 10 + j * 80, 50 + 10 + i * 80, 60, 60);
}
if (Packaging.getChessData(i, j) == Packaging.getBlackKing()) {
g.setColor(Color.BLACK);
g.fillOval(150 + 10 + j * 80, 50 + 10 + i * 80, 60, 60);
g.setColor(Color.RED);
g.fillOval(150 + 20 + j * 80, 50 + 20 + i * 80, 40, 40);
}
if (Packaging.getChessData(i, j) == Packaging.getWhiteKing()) {
g.setColor(Color.WHITE);
g.fillOval(150 + 10 + j * 80, 50 + 10 + i * 80, 60, 60);
g.setColor(Color.RED);
g.fillOval(150 + 20 + j * 80, 50 + 20 + i * 80, 40, 40);
}
if (Packaging.getChessData(i, j) == 5) {
g.setColor(Color.WHITE);
g.fillOval(150 + 10 + j * 80, 50 + 10 + i * 80, 60, 60);
g.setColor(Color.GREEN);
g.fillOval(150 + 20 + j * 80, 50 + 20 + i * 80, 40, 40);
}
}
}
}
@Override
public void run() {
while (true) {
if (IsWin.isWin() == 1 || IsWin.isWin() == 2 || IsWin.isWin() == 3) {
// 写入比赛结果信息
ShowInformation.writeFinalResult();
ShowResult.showWin();
// 写入初始信息
ShowInformation.writeInitInformation();
repaint();
break;
}
try {
Thread.sleep(1000);
Thread.yield();
} catch (InterruptedException g) {
}
}
}
public class MyMouse implements MouseListener {
@Override
public void mousePressed(MouseEvent e) {
checkJumpChess();
}
@Override
public void mouseReleased(MouseEvent e) {
}
@Override
public void mouseEntered(MouseEvent e) {
}
@Override
public void mouseExited(MouseEvent e) {
}
@Override
public void mouseClicked(MouseEvent e) {
if(!startButton.isEnabled()){
startButton.setEnabled(true);
}
if(!regretChessButton.isEnabled()){
regretChessButton.setEnabled(true);
}
playChess(e.getX() + 8, e.getY() + 38);
}
}
private void checkJumpChess() {
if ((isOwn() && HaveChessCanJump.haveWriteChessCanJump())
|| (!isOwn() && HaveChessCanJump.haveBlackChessCanJump())) {
// 在落子时，
AI.setMustJumpChess(true);
System.out.println("必须跳棋");
}
}
/**
* 描述：初步判断这一步棋是好的，才可以走，就是保证走完之后，不能被立即吃掉
*
* @param i:点击坐标
* @param j
* @return
*/
public static boolean thisStepIsGood(int i, int j) {
if (Packaging.getChessData(i, j) == Packaging.getBlackKing()
|| Packaging.getChessData(i, j) == Packaging.getWhiteKing()) {
if (leftUpIsGood(i, j)) {
AI.setI2(i - 1);
AI.setJ2(j - 1);
return true; // 如果左上角右上角或者其他也是最优的，那么优先走左上角的（第一层搜寻）
}
if (rightUpIsGood(i, j)) {
AI.setI2(i - 1);
AI.setJ2(j + 1);
return true;
}
if (leftDownIsGood(i, j)) {
AI.setI2(i + 1);
AI.setJ2(j - 1);
return true;
}
if (rightDownIsGood(i, j)) {
AI.setI2(i + 1);
AI.setJ2(j + 1);
return true;
}
}
if (Packaging.getChessData(i, j) == Packaging.getBlackChess()) {
if (leftDownIsGood(i, j)) {
AI.setI2(i + 1);
AI.setJ2(j - 1);
return true;
}
if (rightDownIsGood(i, j)) {
AI.setI2(i + 1);
AI.setJ2(j + 1);
return true;
}
}
if (Packaging.getChessData(i, j) == Packaging.getWhiteChess()) {
if (leftUpIsGood(i, j)) {
AI.setI2(i - 1);
AI.setJ2(j - 1);
return true; // 如果左上角右上角或者其他也是最优的，那么优先走左上角的（第一层搜寻）
}
if (rightUpIsGood(i, j)) {
AI.setI2(i - 1);
AI.setJ2(j + 1);
return true;
}
}
return false;
}
public static boolean leftUpIsGood(int i, int j) { // 左上
if (Packaging.getChessData(i, j) == Packaging.getBlackKing()
|| Packaging.getChessData(i, j) == Packaging.getBlackChess()) { // 如果是黑方
if ((i - 1 >= 0) && (j - 1 >= 0)) { // 左上角不越界
if (Packaging.getChessData(i - 1, j - 1) == 0) { // 左上角为空
if ((i - 2 >= 0) && (j - 2 >= 0)) { // 左上上角不越界
// 且左上角的左上角不是敌方棋子，则可以是初步最优，因为这一步棋，不能立即被吃
if (Packaging.getChessData(i - 2, j - 2) != Packaging.getWhiteKing()
&& Packaging.getChessData(i - 2, j - 2) != Packaging.getWhiteChess()) {
// 在左上角的左上角不是敌方棋子的情况下，需要判断上面和左面
// 左上角都没有越界，左面和上面也不可能越界
if ((Packaging.getChessData(i, j - 2) == 0 && (Packaging.getChessData(i - 2,
j) == Packaging.getWhiteKing()
|| Packaging.getChessData(i - 2, j) == Packaging.getWhiteChess()))
|| (Packaging.getChessData(i - 2, j) == 0 && (Packaging
.getChessData(i, j - 2) == Packaging.getWhiteKing()
|| Packaging.getChessData(i, j - 2) == Packaging
.getWhiteChess()))) {
return false;
} else { // 如果没有上面那种也可以被吃的情况，就是初步最优
return true;
}
}
} else { // 在左上角的左上角越界的情况下，说明到达边缘，满足初步最优
return true;
}
}
}
}
if (Packaging.getChessData(i, j) == Packaging.getWhiteKing()
|| Packaging.getChessData(i, j) == Packaging.getWhiteChess()) { // 如果是白方
if ((i - 1 >= 0) && (j - 1 >= 0)) { // 左上角不越界
if (Packaging.getChessData(i - 1, j - 1) == 0) { // 左上角为空
if ((i - 2 >= 0) && (j - 2 >= 0)) { // 左上上角不越界
// 且左上角的左上角不是敌方棋子，则可以是初步最优，因为这一步棋，不能立即被吃
if (Packaging.getChessData(i - 2, j - 2) != Packaging.getBlackKing()
&& Packaging.getChessData(i - 2, j - 2) != Packaging.getBlackChess()) {
if ((Packaging.getChessData(i, j - 2) == 0 && (Packaging.getChessData(i - 2,
j) == Packaging.getBlackKing()
|| Packaging.getChessData(i - 2, j) == Packaging.getBlackChess()))
|| (Packaging.getChessData(i - 2, j) == 0 && (Packaging
.getChessData(i, j - 2) == Packaging.getBlackKing()
|| Packaging.getChessData(i, j - 2) == Packaging
.getBlackChess()))) {
return false;
} else { // 如果没有上面那种也可以被吃的情况，就是初步最优
return true;
}
}
} else { // 在左上角的左上角越界的情况下，说明到达边缘，满足初步最优
return true;
}
}
}
}
return false;
}
public static boolean rightUpIsGood(int i, int j) { // 右上
if (Packaging.getChessData(i, j) == Packaging.getBlackKing()
|| Packaging.getChessData(i, j) == Packaging.getBlackChess()) { // 如果是黑方
if ((i - 1 >= 0) && (j + 1 < 10)) {
if (Packaging.getChessData(i - 1, j + 1) == 0) {
if ((i - 2 >= 0) && (j + 2 < 10)) {
if (Packaging.getChessData(i - 2, j + 2) != Packaging.getWhiteKing()
&& Packaging.getChessData(i - 2, j + 2) != Packaging.getWhiteChess()) {
// 判断上面和右面
if ((Packaging.getChessData(i, j + 2) == 0 && (Packaging.getChessData(i - 2,
j) == Packaging.getWhiteKing()
|| Packaging.getChessData(i - 2, j) == Packaging.getWhiteChess()))
|| (Packaging.getChessData(i - 2, j) == 0 && (Packaging
.getChessData(i, j + 2) == Packaging.getWhiteKing()
|| Packaging.getChessData(i, j + 2) == Packaging
.getWhiteChess()))) {
return false;
} else { // 如果没有上面那种也可以被吃的情况，就是初步最优
return true;
}
}
} else {
return true;
}
}
}
}
if (Packaging.getChessData(i, j) == Packaging.getWhiteKing()
|| Packaging.getChessData(i, j) == Packaging.getWhiteChess()) { // 如果是白方
if ((i - 1 >= 0) && (j + 1 < 10)) {
if (Packaging.getChessData(i - 1, j + 1) == 0) {
if ((i - 2 >= 0) && (j + 2 < 10)) {
if (Packaging.getChessData(i - 2, j + 2) != Packaging.getBlackKing()
&& Packaging.getChessData(i - 2, j + 2) != Packaging.getBlackChess()) {
if ((Packaging.getChessData(i, j + 2) == 0 && (Packaging.getChessData(i - 2,
j) == Packaging.getBlackKing()
|| Packaging.getChessData(i - 2, j) == Packaging.getBlackChess()))
|| (Packaging.getChessData(i - 2, j) == 0 && (Packaging
.getChessData(i, j + 2) == Packaging.getBlackKing()
|| Packaging.getChessData(i, j + 2) == Packaging
.getBlackChess()))) {
return false;
} else { // 如果没有上面那种也可以被吃的情况，就是初步最优
return true;
}
}
} else {
return true;
}
}
}
}
return false;
}
public static boolean leftDownIsGood(int i, int j) { // 左下
if (Packaging.getChessData(i, j) == Packaging.getBlackKing()
|| Packaging.getChessData(i, j) == Packaging.getBlackChess()) { // 如果是黑方
if ((i + 1 < 10) && (j - 1 >= 0)) {
if (Packaging.getChessData(i + 1, j - 1) == 0) {
if ((i + 2 < 10) && (j - 2 >= 0)) {
if (Packaging.getChessData(i + 2, j - 2) != Packaging.getWhiteKing()
&& Packaging.getChessData(i + 2, j - 2) != Packaging.getWhiteChess()) {
// 左、下
if ((Packaging.getChessData(i, j - 2) == 0 && (Packaging.getChessData(i + 2,
j) == Packaging.getWhiteKing()
|| Packaging.getChessData(i + 2, j) == Packaging.getWhiteChess()))
|| (Packaging.getChessData(i + 2, j) == 0 && (Packaging
.getChessData(i, j - 2) == Packaging.getWhiteKing()
|| Packaging.getChessData(i, j - 2) == Packaging
.getWhiteChess()))) {
return false;
} else { // 如果没有上面那种也可以被吃的情况，就是初步最优
return true;
}
}
} else {
return true;
}
}
}
}
if (Packaging.getChessData(i, j) == Packaging.getWhiteKing()
|| Packaging.getChessData(i, j) == Packaging.getWhiteChess()) { // 如果是白方
if ((i + 1 < 10) && (j - 1 >= 0)) {
if (Packaging.getChessData(i + 1, j - 1) == 0) {
if ((i + 2 < 10) && (j - 2 >= 0)) {
if (Packaging.getChessData(i + 2, j - 2) != Packaging.getBlackKing()
&& Packaging.getChessData(i + 2, j - 2) != Packaging.getBlackChess()) {
if ((Packaging.getChessData(i, j - 2) == 0 && (Packaging.getChessData(i + 2,
j) == Packaging.getBlackKing()
|| Packaging.getChessData(i + 2, j) == Packaging.getBlackChess()))
|| (Packaging.getChessData(i + 2, j) == 0 && (Packaging
.getChessData(i, j - 2) == Packaging.getBlackKing()
|| Packaging.getChessData(i, j - 2) == Packaging
.getBlackChess()))) {
return false;
} else { // 如果没有上面那种也可以被吃的情况，就是初步最优
return true;
}
}
} else {
return true;
}
}
}
}
return false;
}
public static boolean rightDownIsGood(int i, int j) { // 右下
if (Packaging.getChessData(i, j) == Packaging.getBlackKing()
|| Packaging.getChessData(i, j) == Packaging.getBlackChess()) { // 如果是黑方
if ((i + 1 < 10) && (j + 1 < 10)) {
if (Packaging.getChessData(i + 1, j + 1) == 0) {
if ((i + 2 < 10) && (j + 2 < 10)) {
if (Packaging.getChessData(i + 2, j + 2) != Packaging.getWhiteKing()
&& Packaging.getChessData(i + 2, j + 2) != Packaging.getWhiteChess()) {
// 右、下
if ((Packaging.getChessData(i, j + 2) == 0 && (Packaging.getChessData(i + 2,
j) == Packaging.getWhiteKing()
|| Packaging.getChessData(i + 2, j) == Packaging.getWhiteChess()))
|| (Packaging.getChessData(i + 2, j) == 0 && (Packaging
.getChessData(i, j + 2) == Packaging.getWhiteKing()
|| Packaging.getChessData(i, j + 2) == Packaging
.getWhiteChess()))) {
return false;
} else { // 如果没有上面那种也可以被吃的情况，就是初步最优
return true;
}
}
} else {
return true;
}
}
}
}
if (Packaging.getChessData(i, j) == Packaging.getWhiteKing()
|| Packaging.getChessData(i, j) == Packaging.getWhiteChess()) { // 如果是白方
if ((i + 1 < 10) && (j + 1 < 10)) {
if (Packaging.getChessData(i + 1, j + 1) == 0) {
if ((i + 2 < 10) && (j + 2 < 10)) {
if (Packaging.getChessData(i + 2, j + 2) != Packaging.getBlackKing()
&& Packaging.getChessData(i + 2, j + 2) != Packaging.getBlackChess()) {
if ((Packaging.getChessData(i, j + 2) == 0 && (Packaging.getChessData(i + 2,
j) == Packaging.getBlackKing()
|| Packaging.getChessData(i + 2, j) == Packaging.getBlackChess()))
|| (Packaging.getChessData(i + 2, j) == 0 && (Packaging
.getChessData(i, j + 2) == Packaging.getBlackKing()
|| Packaging.getChessData(i, j + 2) == Packaging
.getBlackChess()))) {
return false;
} else { // 如果没有上面那种也可以被吃的情况，就是初步最优
return true;
}
}
} else {
return true;
}
}
}
}
return false;
}
public static int getStep() {
return step;
}
public static void setStep(int step) {
MainFrame.step = step;
}
public static boolean isEnemyLaterIsEmpty() {
return enemyLaterIsEmpty;
}
public static void setEnemyLaterIsEmpty(boolean enemyLaterIsEmpty) {
MainFrame.enemyLaterIsEmpty = enemyLaterIsEmpty;
}
public static boolean isOwn() {
return own;
}
public static void setOwn(boolean own) {
MainFrame.own = own;
}
public static boolean isChessDisplay() {
return chessDisplay;
}
public static void setChessDisplay(boolean chessDisplay) {
MainFrame.chessDisplay = chessDisplay;
}
public static boolean isWillDisplayChess() {
return willDisplayChess;
}
public static void setWillDisplayChess(boolean willDisplayChess) {
MainFrame.willDisplayChess = willDisplayChess;
}
public static boolean isWillNotDisplayChess() {
return willNotDisplayChess;
}
public static void setWillNotDisplayChess(boolean willNotDisplayChess) {
MainFrame.willNotDisplayChess = willNotDisplayChess;
}
private boolean done;
private void playChess(int x, int y) {
this.x = x;
this.y = y;
done = false;
try {
done = AIs.ais(this.x, this.y);
} catch (Exception e2) {
e2.printStackTrace();
}
if (done) {
SwingUtilities.invokeLater(() -> {
scan.scan();
scan.printWeight();
scan.clearWeight();
CanEvenJump.canEvenJump(); // 测试
CanEvenJump.bestChess();// 测试
try {
AI.ai();
} catch (Exception e1) {
e1.printStackTrace();
}
InitData.printChessData();
CanEvenJump.canEvenJump(); // 测试
CanEvenJump.bestChess();// 测试
game_field.display();
if (game_field.gameOver()) {
if (game_field.whitesWin()) {
System.out.println("Player 1 wins");
} else if (game_field.blacksWin()) {
System.out.println("Player 2 wins");
} else {
System.out.println("Draw");
}
}
//记录棋盘
GameRecord.backupGame();
repaint();
});
if (getStep() % 2 == 1) {
tip.setToolTip(new ImageIcon("png\\chess_black.png"),"------轮到黑方走棋------");
} else {
tip.setToolTip(new ImageIcon("png\\chess_white.png"),"------轮到白方走棋------");
}
}
//图标显示为棋子
else {
if (isWillDisplayChess()) {
setWillDisplayChess(false);
if (!isChessDisplay()) {
setChessDisplay(true);
}
} else if (isWillNotDisplayChess()) {
setWillNotDisplayChess(false);
setChessDisplay(false);
}
if (isChessDisplay()) {
chessPic.setLocation(x - 37, y - 62);
chessPic.setSize(chessPic.getPreferredSize());
point = new Point(x, y);
}
}
}
//鼠标控制棋子图标事件
private class ChessMouseInputAdapter extends MouseInputAdapter {
//棋子图标点击事件
@Override
public void mousePressed(MouseEvent e) {
if (isChessDisplay()) {
point = SwingUtilities.convertPoint(chessPic, e.getPoint(), that); //转换坐标系统
checkJumpChess();
playChess(point.x, point.y);
if (done) {
chessDisplay = false;
chessPic.setLocation(-60, -60);
repaint();// 刷新
}
if (firstMoveButton.isEnabled()) {
firstMoveButton.setEnabled(false);
}
}
}
//棋子图标移动事件
@Override
public void mouseMoved(MouseEvent e) {
if (isChessDisplay()) {
Point newPoint = SwingUtilities.convertPoint(chessPic, e.getPoint(), that); //转换坐标系统
chessPic.setLocation(chessPic.getX() + (newPoint.x - point.x), chessPic.getY() + (newPoint.y - point.y)); //设置标签图片的新位置
point = newPoint; //更改坐标点
repaint();// 刷新
}
}
}
}玩家走棋模块（myFrame\AIs.java）
package myFrame;
import java.util.Arrays;
import monteCarloTreeSearch.*;
import moveWays.KingChess;
import javax.swing.*;
/**
*
* @author 名字
* @邮箱：mail@company.com
* @修改日期：2020.11.11
* @描述：点击时的事件，点击走棋，接收点击坐标
*
*/
public class AIs {
private static String movePath = "";
private static MonteCarloPlayer player;
//机器下棋期间锁定棋盘的变量
private static boolean isFinished = true;
/**
* 描述：点击时的事件(主动走棋)
*
* @param x：点击的xy坐标
* @param y
* @throws Exception
*/
public static boolean ais(int x, int y) throws Exception {
//增加机器下棋期间对棋盘的锁定，避免重复点击棋盘导致问题
boolean foundChess = false;
if (isFinished) {
isFinished = false;
ToolTip tip = new ToolTip();
for (int i = 0; i < 10; i++) {
for (int j = 0; j < 10; j++) {
if ((x - myFrame.InitData.getXQ(i, j) > -58) && (x - myFrame.InitData.getXQ(i, j) < 58)
&& (y - myFrame.InitData.getYQ(i, j) > -58) && (y - myFrame.InitData.getYQ(i, j) < 58)) {
// 1、3是黑棋走,2、4是白棋走
if (AI.isZT() == false) { // 拿起棋子
moveWays.SearchFourAngleEmpty.rightDownSearchEmpty(i, j);
myFrame.AI.setI0(i);// 将拿起棋子的ij索引临时保存
myFrame.AI.setJ0(j);
if ((MainFrame.getStep() % 2) + 1 == 1) {
System.out.println("------轮到黑方走棋------");
tip.setIcon(new ImageIcon("png\\chess_black.png"));
player = MainFrame.player2;
} else {
System.out.println("------轮到白方走棋------");
tip.setIcon(new ImageIcon("png\\chess_white.png"));
player = MainFrame.player1;
}
if (AI.isMustEvenJump()) { // 判断是不是必须连跳
if (i == AI.getI1() && j == AI.getJ1()) { // i1,j1
// 为上次落子时保存的索引，连跳时必须点击上次的棋子
AI.setZT(true);
tip.setToolTip("连跳");
} else {
tip.setToolTip("必须点击上次落下的棋子，请从新点击");
}
} else { // 不用连跳，所以正常拿起棋子
if (myFrame.Packaging.getChessData(i, j) == myFrame.Packaging.getFlag()
|| myFrame.Packaging.getChessData(i, j) == myFrame.Packaging.getKingFlag()) {// 判断轮到哪个棋子走
// flag = Chess_Data[i][j];
// 如果此次必须跳棋，则必须点击可以跳的那颗棋子
if (AI.isMustJumpChess()) {
if (moveWays.ThisChessCanJump.thisChessCanJump(i, j)) {// 判断点击的这颗棋子能不能跳
tip.setToolTip("拿起 棋子,可以跳");
AI.setCanJump(true);
AI.setZT(true);
//显示棋子图标
MainFrame.setWillDisplayChess(true);
} else {
tip.setToolTip("不可拿起，从新点击");
}
} else { // 在没有跳棋的情况下，才可以移动
if (moveWays.ThisChessCanMove.thisChessCanMove(i, j)) { // 判断点击的棋子能不能移动
tip.setToolTip("拿起 棋子,可以走");
// canMove = true;
AI.setZT(true);
//显示棋子图标
MainFrame.setWillDisplayChess(true);
} else {
tip.setToolTip("不可拿起，从新点击");
}
}
}
}
} else if (AI.isZT() && !AI.isMustEvenJump()
&& (myFrame.Packaging.getChessData(i, j) == myFrame.Packaging.getFlag()
|| myFrame.Packaging.getChessData(i, j) == myFrame.Packaging.getKingFlag())
&& !AI.isMustJumpChess() && moveWays.ThisChessCanMove.thisChessCanMove(i, j)) {// 判断点击的棋子能不能移动
tip.setToolTip("拿起 棋子,可以走");
myFrame.AI.setI0(i);// 改变选择移动的棋子，将拿起棋子的ij索引临时保存
myFrame.AI.setJ0(j);
// canMove = true;
// AI.setZT(true);
//显示棋子图标
MainFrame.setWillDisplayChess(true);
} else if (AI.isZT() && !AI.isMustEvenJump()
&& moveWays.ThisChessCanJump.thisChessCanJump(i, j)) {
tip.setToolTip("拿起 棋子,可以跳");
myFrame.AI.setI0(i);// 改变选择跳棋的棋子，将拿起棋子的ij索引临时保存
myFrame.AI.setJ0(j);
//显示棋子图标
MainFrame.setWillDisplayChess(true);
} else {
/**
* 如果能连跳，必须连跳 如何可以不连跳，规则？ 跳棋结束后需要修改的数据:mustJumpChess、canJump、
* 移动结束后需要修改的数据:canMove 最后需要修改的数据:ZT
*/
if (AI.isZT() == true) {// 下棋状态
AI.setI1(i); // i1j1为临时保存的落下棋子的索引
AI.setJ1(j);
// 只有必须跳，和不能跳，两种情况
if (AI.isMustJumpChess()) { // 如果能吃，必须吃
// 此时必须进行跳棋，再判断点击的那颗棋子,能不能跳,拿起的时候已经判断
if (AI.isCanJump()) {
// 判断落子的位置满不满足规定
if (moveWays.CanJumpToHere.canJumpToHere(AI.getI0(), AI.getJ0(), i, j)) { // 这个棋子能跳棋，且还需满足点击的位置没有棋子，才能跳，移动同此
tip.setToolTip("完成跳棋,判断能不能连跳");
moveWays.ChessJump.chessJump(AI.getI0(), AI.getJ0(), i, j); // 此时，被吃棋子的数据没有清零，等结束跳棋后再进行清零
Movement movement = new Movement(Arrays.asList(9 - AI.getI0(), AI.getJ0()));
movement.steps.add(Arrays.asList(9 - i, j));
player.move(movement);
AI.setZT(false);
if (AI.isMustEvenJump()) {
AI.setMovePath(AI.getMovePath() + "x"
+ (myFrame.Packaging.getChessLocation(i, j) < 10 ? "0" : "")
+ myFrame.Packaging.getChessLocation(i, j));
} else {
AI.setMovePath(AI.getMovePath() + " "
+ (myFrame.Packaging.getChessLocation(AI.getI0(),
AI.getJ0()) < 10 ? "0" : "")
+ myFrame.Packaging.getChessLocation(AI.getI0(), AI.getJ0())
+ "x"
+ (myFrame.Packaging.getChessLocation(i, j) < 10 ? "0" : "")
+ myFrame.Packaging.getChessLocation(i, j));
}
setMovePath(getMovePath() + " " + myFrame.Packaging.getChessLocation(AI.getI0(), AI.getJ0())
+ "x" + myFrame.Packaging.getChessLocation(i, j));
// 跳棋之后，落子之后的判断
// 判断能不能连跳，就是落下的那颗棋子还能不能跳
// 如果能跳，则下次必须拿起这颗棋子，而且再落下时，必须跳
if (moveWays.ThisChessCanJump.thisChessCanJump(i, j)) { // 如果能连跳
if (myFrame.Packaging.getFlag() == myFrame.Packaging.getBlackChess()
|| myFrame.Packaging.getFlag() == myFrame.Packaging
.getBlackKing()) {
myFrame.Packaging.setFlag(myFrame.Packaging.getWhiteChess());
} else {
myFrame.Packaging.setFlag(myFrame.Packaging.getBlackChess());
}
myFrame.Packaging.setCount(myFrame.Packaging.getCount() + 1);
AI.setMustEvenJump(true); // 拿起棋子时的判断
AI.setMustJumpChess(true); // 落下棋子时的判断
tip.setToolTip("能连跳，下次必须还要拿起这颗棋子");
} else { // 如果不能连跳，此次跳棋结束，修改数据，进行刷新
player.display();
System.out.println("跳棋结束");
for (int s = 0; s <= myFrame.Packaging.getCount(); s++) {
System.out
.println("打印被吃棋:" + moveWays.WillBeEatChess.getWillBeEatX(s)
+ "," + moveWays.WillBeEatChess.getWillBeEatY(s));
myFrame.Packaging.setChessData(0,
moveWays.WillBeEatChess.getWillBeEatX(s),
moveWays.WillBeEatChess.getWillBeEatY(s));
}
myFrame.Packaging.setCount(0); // 临时被吃棋的个数清零
AI.setMustEvenJump(false);
AI.setMustJumpChess(false);
AI.setCanJump(false);
// 跳棋结束后，棋子所在位置判断是否为王棋
KingChess.becomeKingChess(i, j);// 如果满足条件，则变为王棋
MainFrame.setStep(MainFrame.getStep() + 1);
myFrame.ShowInformation.writeResult();
AI.setMovePath("");
if (!foundChess) {
foundChess = true;
}
//鼠标的棋子图标还原
MainFrame.setWillNotDisplayChess(true);
if ((MainFrame.getStep() % 2) == 0) {
tip.setToolTip(new ImageIcon("png\\chess_black.png"), "机器执黑棋正在思考......");
} else {
tip.setToolTip(new ImageIcon("png\\chess_white.png"), "机器执白棋正在思考......");
}
}
} else {
tip.setToolTip("错误，请从新点击");
}
}
} else { // 不能跳棋的情况下才能移动
if (moveWays.CanMoveToHere.canMoveToHere(AI.getI0(), AI.getJ0(), i, j)) {
System.out.println("完成移动");
moveWays.ChessMove.chessMove(AI.getI0(), AI.getJ0(), i, j); // 移动
Movement movement = new Movement(Arrays.asList(9 - AI.getI0(), AI.getJ0()));
movement.steps.add(Arrays.asList(9 - i, j));
player.move(movement);
KingChess.becomeKingChess(i, j);// 如果满足条件，则变为王棋
AI.setZT(false);
AI.setMovePath(AI.getMovePath() + " "
+ (myFrame.Packaging.getChessLocation(AI.getI0(), AI.getJ0()) < 10 ? "0"
: "")
+ myFrame.Packaging.getChessLocation(AI.getI0(), AI.getJ0()) + "-"
+ (myFrame.Packaging.getChessLocation(i, j) < 10 ? "0" : "")
+ myFrame.Packaging.getChessLocation(i, j));
MainFrame.setStep(MainFrame.getStep() + 1);
myFrame.ShowInformation.writeResult();
AI.setMovePath("");
if (!foundChess) {
foundChess = true;
}
//鼠标棋子图标还原
MainFrame.setWillNotDisplayChess(true);
if ((MainFrame.getStep() % 2) == 1) {
tip.setToolTip(new ImageIcon("png\\chess_black.png"), "机器执黑棋正在思考......");
} else {
tip.setToolTip(new ImageIcon("png\\chess_white.png"), "机器执白棋正在思考......");
}
}
}
}
}
}
}
}
isFinished = true;
}
return foundChess;
}
public static String getMovePath() {
return movePath;
}
public static void setMovePath(String movePath) {
AIs.movePath = movePath;
}
}机器AI走棋模块（myFrame\AI.java）
package myFrame;
import moveWays.CanEvenJump2.*;
import moveWays.KingChess;
import java.util.*;
import monteCarloTreeSearch.*;
import javax.swing.*;
/**
*
* @author 名字
* @邮箱：mail@company.com
* @修改日期：2020.11.11
* @描述：机器自动走棋程序
*
*/
public class AI {
public static boolean haveMoveData = false;
private static boolean isFind = true; // 没有找到跳棋最多的棋子，所以最开始跳棋时，先进行测试。
private static boolean mustJumpChess;
private static boolean mustEvenJump;
private static boolean ZT;
private static int adv = 0;// 有没有最优的
/**
* 拿起棋子的索引
*/
private static int i0;
private static int j0;
/**
* 落下棋子的ij索引
*/
private static int i1;
private static int j1;
private static boolean canJump;
private static boolean canMove = true;
private static boolean goodStep;
private static String movePath = "";
/**
* 下次即将要走的位置
*/
private static int i2;
private static int j2;
private static int ix;
private static int iy;
public static boolean isMustJumpChess() {
return mustJumpChess;
}
public static void setMustJumpChess(boolean mustJumpChess) {
AI.mustJumpChess = mustJumpChess;
}
public static boolean isMustEvenJump() {
return mustEvenJump;
}
public static void setMustEvenJump(boolean mustEvenJump) {
AI.mustEvenJump = mustEvenJump;
}
public static boolean isZT() {
return ZT;
}
public static void setZT(boolean zT) {
ZT = zT;
}
public static int getI1() {
return i1;
}
public static void setI1(int i1) {
AI.i1 = i1;
}
public static int getI0() {
return i0;
}
public static void setI0(int i0) {
AI.i0 = i0;
}
public static int getJ0() {
return j0;
}
public static void setJ0(int j0) {
AI.j0 = j0;
}
public static int getJ1() {
return j1;
}
public static void setJ1(int j1) {
AI.j1 = j1;
}
public static boolean isCanJump() {
return canJump;
}
public static void setCanJump(boolean canJump) {
AI.canJump = canJump;
}
public static boolean isGoodStep() {
return goodStep;
}
public static void setGoodStep(boolean goodStep) {
AI.goodStep = goodStep;
}
public static String getMovePath() {
return movePath;
}
public static void setMovePath(String movePath) {
AI.movePath = movePath;
}
public static int getI2() {
return i2;
}
public static void setI2(int i2) {
AI.i2 = i2;
}
public static int getJ2() {
return j2;
}
public static void setJ2(int j2) {
AI.j2 = j2;
}
private static MonteCarloPlayer player;
/**
* 自动生成满足规则的ij 描述：
*
* @throws Exception
*/
public static void ai() throws Exception {
if (moveWays.IsWin.isWin() == 1 || moveWays.IsWin.isWin() == 2 || moveWays.IsWin.isWin() == 3) {
// 写入比赛结果信息
myFrame.ShowInformation.writeFinalResult();
myFrame.ShowResult.showWin();
// 写入初始信息
myFrame.ShowInformation.writeInitInformation();
}
if ((MainFrame.getStep() % 2) + 1 == 1) {
System.out.println("------轮到黑方走棋------");
player = MainFrame.player2;
} else {
System.out.println("------轮到白方走棋------");
player = MainFrame.player1;
}
// 先判断是不是必须跳棋
if (((myFrame.Packaging.getFlag() == myFrame.Packaging.getWhiteChess()
|| myFrame.Packaging.getFlag() == myFrame.Packaging.getWhiteKing())
&& moveWays.HaveChessCanJump.haveWriteChessCanJump())
|| (((myFrame.Packaging.getFlag() == myFrame.Packaging.getBlackChess()
|| myFrame.Packaging.getFlag() == myFrame.Packaging.getBlackKing())
&& moveWays.HaveChessCanJump.haveBlackChessCanJump()))) {
if (mustEvenJump) {
} else {
mustJumpChess = true;
haveMoveData = true;
// 直接拿起棋子
i0 = moveWays.CanEvenJump.getBestJumpChessI();
j0 = moveWays.CanEvenJump.getBestJumpChessJ();
canJump = true;
ZT = true;
}
}
ToolTip tip = new ToolTip();
if (!ZT) { // 拿起棋子
outer: for (int i = 0; i < 10; i++) {
for (int j = 0; j < 10; j++) {
i0 = i;// 将拿起棋子的ij索引临时保存
j0 = j;
if (mustEvenJump) { // 判断是不是必须连跳
if (i == i1 && j == j1) { // i1,j1为上次落子时保存的索引，连跳时必须点击上次的棋子
ZT = true;
System.out.println("连跳");
break outer;
} else {
continue;
}
} else { // 不用连跳，所以正常拿起棋子
if (myFrame.Packaging.getChessData(i, j) == myFrame.Packaging.getFlag()
|| myFrame.Packaging.getChessData(i, j) == myFrame.Packaging.getKingFlag()) {// 判断轮到哪个棋子走
if (mustJumpChess) {
if (moveWays.ThisChessCanEvenJump.thisChessCanEvenJump(i, j)) {
System.out.println("拿起 棋子,可以跳");
canJump = true;
ZT = true;
break outer;
} else {
continue;
}
} else { // 在没有跳棋的情况下，才可以移动
// 先看看有没有己方能被吃的棋子，有的话先搜寻那颗棋子
out: for (int ws = 0; ws < 10; ws++) {
for (int qs = 0; qs < 10; qs++) {
if (myFrame.Packaging.getChessData(ws, qs) == myFrame.Packaging.getFlag()
|| myFrame.Packaging.getChessData(ws, qs) == myFrame.Packaging
.getKingFlag()) {// 判断轮到哪个棋子走
if (MainFrame.thisStepIsGood(ws, qs)) {
// 如果搜寻之前有能被吃掉的棋子，则默认最优
if (moveWays.SimulateMove.simulateMove(ws, qs)) {
adv++;
break out;
} else {
continue;
}
}
}
}
}
if (moveWays.ThisChessCanMove.thisChessCanMove(i0, j0)) { // 判断点击的棋子能不能移动
if (adv > 0) {
adv = 0;
if (MainFrame.thisStepIsGood(i, j)) {
// 在最优的情况下，再全局判断有没有能被吃的棋子
// 如果有，说明移动之后导致己方有棋子能被吃，不算最优，重新搜寻
if (moveWays.SimulateMove.simulateMove(i0, j0)) {
System.out.println("拿起 棋子,可以走");
canMove = true;
goodStep = true;
ZT = true;
break outer;
}
} else {
}
} else {
// 当棋子全都没有最优的情况下，才可以选择随机的
System.out.println("拿起棋子");
ZT = true;
break outer;
}
} else {
continue;
}
}
}
}
}
}
} // 放下棋子
if (ZT) {// 下棋状态
outer: for (int i = 0; i < 10; i++) {
for (int j = 0; j < 10; j++) {
i1 = i; // i1j1为临时保存的落下棋子的索引
j1 = j;
if (haveMoveData) {
i1 = moveWays.CanEvenJump.getBestJumpChessI1();
j1 = moveWays.CanEvenJump.getBestJumpChessJ1();
haveMoveData = false;
}
// 只有必须跳，和不能跳，两种情况
if (mustJumpChess) { // 如果能吃，必须吃
// 此时必须进行跳棋，再判断点击的那颗棋子,能不能跳,拿起的时候已经判断
// 判断落子的位置满不满足规定
if (moveWays.CanJumpToHere.canJumpToHere(i0, j0, i1, j1)) { // 这个棋子能跳棋，且还需满足点击的位置没有棋子，才能跳，移动同此
String simulateMoveColor = MainFrame.isOwn() ? "BLACK" : "WHITE";
List<NodeStep> wayEat = moveWays.CanEvenJump2.canEvenJump(simulateMoveColor); // 测试
int lastX = 0, lastY = 0;
boolean isFirstJumpPath = true;
for (NodeStep ns : wayEat) {
moveWays.ChessJump.chessJump(ns.ndstt.x, ns.ndstt.y, ns.ndend.x, ns.ndend.y);
Movement movement = new Movement(Arrays.asList(9 - ns.ndstt.x, ns.ndstt.y));
movement.steps.add(Arrays.asList(9 - ns.ndend.x, ns.ndend.y));
player.move(movement);
if (isFirstJumpPath) {
AI.setMovePath(AI.getMovePath() + " "
+ (myFrame.Packaging.getChessLocation(ns.ndstt.x, ns.ndstt.y) < 10 ? "0"
: "")
+ myFrame.Packaging.getChessLocation(ns.ndstt.x, ns.ndstt.y) + "x"
+ (myFrame.Packaging.getChessLocation(ns.ndend.x, ns.ndend.y) < 10 ? "0"
: "")
+ myFrame.Packaging.getChessLocation(ns.ndend.x, ns.ndend.y));
isFirstJumpPath = false;
} else {
AI.setMovePath(AI.getMovePath() + "x"
+ (myFrame.Packaging.getChessLocation(ns.ndend.x, ns.ndend.y) < 10 ? "0"
: "")
+ myFrame.Packaging.getChessLocation(ns.ndend.x, ns.ndend.y));
}
System.out.println("能连跳，下次必须还要拿起这颗棋子");
myFrame.Packaging.setCount(myFrame.Packaging.getCount() + 1);
moveWays.WillBeEatChess.setWillBeEatX(ns.ndeat.x, myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(ns.ndeat.y, myFrame.Packaging.getCount());
lastX = ns.ndend.x;
lastY = ns.ndend.y;
}
// 跳棋结束后，棋子所在位置判断是否为王棋
KingChess.becomeKingChess(lastX, lastY);// 如果满足条件，则变为王棋
ZT = false;
player.display();
System.out.println("连跳结束");
ArrayList<List<Integer>> eaten = new ArrayList<>();
for (int s = 0; s <= myFrame.Packaging.getCount(); s++) {
myFrame.Packaging.setChessData(0, moveWays.WillBeEatChess.getWillBeEatX(s),
moveWays.WillBeEatChess.getWillBeEatY(s));
eaten.add(Arrays.asList(9 - moveWays.WillBeEatChess.getWillBeEatX(s),
moveWays.WillBeEatChess.getWillBeEatY(s)));
}
myFrame.Packaging.setCount(0); // 临时被吃棋的个数清零
mustEvenJump = false;
mustJumpChess = false;
canJump = false;
// 此次跳棋全部结束，修改变量
if (isFind) {
moveWays.ThisChessCanJump.setCanJumpChessIndex(0);
moveWays.ThisChessCanJump.setCanJumpChessNum(0);
moveWays.ThisChessCanJump.setCanJumpChessTest(0);
moveWays.ThisChessCanJump.setEvenJumpCountIndex(0);
moveWays.ThisChessCanJump.setEvenJumpCountMax(0);
for (int w = 0; w < 20; w++) {
moveWays.ThisChessCanJump.setCanJumpChessX(0, w);
moveWays.ThisChessCanJump.setCanJumpChessY(0, w);
moveWays.ThisChessCanJump.setEvenJumpCount(0, w);
}
MainFrame.setStep(MainFrame.getStep() + 1);
// 写入到文件中
myFrame.ShowInformation.writeResult();
movePath = "";
break outer;
}
if (MainFrame.getStep() % 2 == 0) {
tip.setToolTip(new ImageIcon("png\\chess_black.png"),"------轮到黑方走棋------");
} else {
tip.setToolTip(new ImageIcon("png\\chess_white.png"),"------轮到白方走棋------");
}
} else {
continue;
}
} else { // 不能跳棋的情况下才能移动
try {
Movement move = player.move();
int i3 = 9 - move.steps.get(0).get(0);
int j3 = move.steps.get(0).get(1);
int i4 = 9 - move.steps.get(1).get(0);
int j4 = move.steps.get(1).get(1);
setCanMove(true);// 先将修改为true可以走，然后判断，如果可以走，则不修改默认走，如果不能走，则修改
moveWays.ChessMove.chessMove(i3, j3, i4, j4); // 移动
KingChess.becomeKingChess(i4, i4);// 如果满足条件，则变为王棋
canMove = false;
goodStep = false;
ZT = false;
AI.setMovePath(AI.getMovePath() + " "
+ (myFrame.Packaging.getChessLocation(i3, j3) < 10 ? "0" : "")
+ myFrame.Packaging.getChessLocation(i3, j3) + "-"
+ (myFrame.Packaging.getChessLocation(i4, j4) < 10 ? "0" : "")
+ myFrame.Packaging.getChessLocation(i4, j4));
} catch (Exception ex) {
// 将走的状态添加到数组
if (goodStep) { // 如果应该走最优
adv = 0;
Movement movement = new Movement(Arrays.asList(9 - i0, j0));
movement.steps.add(Arrays.asList(9 - i2, j2));
player.move(movement);
moveWays.ChessMove.chessMove(i0, j0, i2, j2); // 移动
KingChess.becomeKingChess(i2, j2);// 如果满足条件，则变为王棋
canMove = false;
goodStep = false;
ZT = false;
AI.setMovePath(AI.getMovePath() + " "
+ (myFrame.Packaging.getChessLocation(AI.getI0(), AI.getJ0()) < 10 ? "0" : "")
+ myFrame.Packaging.getChessLocation(AI.getI0(), AI.getJ0()) + "-"
+ (myFrame.Packaging.getChessLocation(i2, j2) < 10 ? "0" : "")
+ myFrame.Packaging.getChessLocation(i2, j2));
} else { // 如果不能走最优的
adv = 0;
if (moveWays.CanMoveToHere.canMoveToHere(i0, j0, i, j)) {
setCanMove(true);// 先将修改为true可以走，然后判断，如果可以走，则不修改默认走，如果不能走，则修改
Movement movement = new Movement(Arrays.asList(9 - i0, j0));
movement.steps.add(Arrays.asList(9 - i, j));
player.move(movement);
moveWays.ChessMove.chessMove(i0, j0, i, j); // 移动
KingChess.becomeKingChess(i, j);// 如果满足条件，则变为王棋
ZT = false;
AI.setMovePath(AI.getMovePath() + " "
+ (myFrame.Packaging.getChessLocation(AI.getI0(), AI.getJ0()) < 10 ? "0"
: "")
+ myFrame.Packaging.getChessLocation(AI.getI0(), AI.getJ0()) + "-"
+ (myFrame.Packaging.getChessLocation(i, j) < 10 ? "0" : "")
+ myFrame.Packaging.getChessLocation(i, j));
}
}
}
MainFrame.setStep(MainFrame.getStep() + 1);
myFrame.ShowInformation.writeResult();
movePath = "";
if (MainFrame.getStep() % 2 == 0) {
tip.setToolTip(new ImageIcon("png\\chess_black.png"),"------轮到黑方走棋------");
} else {
tip.setToolTip(new ImageIcon("png\\chess_white.png"),"------轮到白方走棋------");
}
break outer;
}
}
}
}
}
public static int getIx() {
return ix;
}
public static void setIx(int ix) {
AI.ix = ix;
}
public static int getIy() {
return iy;
}
public static void setIy(int iy) {
AI.iy = iy;
}
public static boolean isCanMove() {
return canMove;
}
public static void setCanMove(boolean canMove) {
AI.canMove = canMove;
}
}棋子移动模块（moveWays\ChessMove.java）
package moveWays;
/**
*
* @author 名字
* @邮箱：mail@company.com
* @修改日期：2020.11.11
* @描述：用于棋子的移动后，修改数据
*
*/
public class ChessMove {
/**
*
* 描述：用于棋子的移动后，修改数据
*
* @param i0 拿起棋子时的索引
* @param j0
* @param i 放下棋子时的索引
* @param j
*/
public static void chessMove(int i0, int j0, int i, int j) {
if (myFrame.Packaging.getChessData(i0, j0) == myFrame.Packaging.getBlackKing()) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getBlackKing(), i, j); // 将落下的那颗棋子的值变
// 拿起时的值
myFrame.Packaging.setKingFlag(myFrame.Packaging.getWhiteKing()); // 修改棋子标志
myFrame.Packaging.setFlag(myFrame.Packaging.getWhiteChess());
}
if (myFrame.Packaging.getChessData(i0, j0) == myFrame.Packaging.getWhiteKing()) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getWhiteKing(), i, j); // 将落下的那颗棋子的值变
// 拿起时的值
myFrame.Packaging.setKingFlag(myFrame.Packaging.getBlackKing()); // 修改棋子标志
myFrame.Packaging.setFlag(myFrame.Packaging.getBlackChess());
}
// 如果是黑棋
if (myFrame.Packaging.getChessData(i0, j0) == myFrame.Packaging.getBlackChess()) {
if (moveWays.JudgeFourAngleCanMove.leftDownCanMove(i0, j0)) { // 左下
if (i == (i0 + 1) && j == (j0 - 1)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getBlackChess(), i, j); // 将落下的那颗棋子的值变
// 拿起时的值
}
}
if (moveWays.JudgeFourAngleCanMove.rightDownCanMove(i0, j0)) { // 右下
if (i == (i0 + 1) && j == (j0 + 1)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getBlackChess(), i, j); // 将落下的那颗棋子的值变
// 拿起时的值
}
}
myFrame.Packaging.setKingFlag(myFrame.Packaging.getWhiteKing()); // 修改棋子标志
myFrame.Packaging.setFlag(myFrame.Packaging.getWhiteChess());
}
// 如果是白棋
if (myFrame.Packaging.getChessData(i0, j0) == myFrame.Packaging.getWhiteChess()) {
if (moveWays.JudgeFourAngleCanMove.leftUpCanMove(i0, j0)) { // 左上
if (i == (i0 - 1) && j == (j0 - 1)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getWhiteChess(), i, j);
; // 将落下的那颗棋子的值变 拿起时的值
}
}
if (moveWays.JudgeFourAngleCanMove.rightUpCanMove(i0, j0)) { // 右上
if (i == (i0 - 1) && j == (j0 + 1)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getWhiteChess(), i, j); // 将落下的那颗棋子的值变
// 拿起时的值
}
}
myFrame.Packaging.setKingFlag(myFrame.Packaging.getBlackKing()); // 修改棋子标志
myFrame.Packaging.setFlag(myFrame.Packaging.getBlackChess());
}
}
}棋子跳吃模块（moveWays\ChessJump.java）
package moveWays;
/**
*
* @author 名字
* @邮箱：mail@company.com
* @修改日期：2020.11.11
* @描述：执行跳棋，修改数据。
*
*/
public class ChessJump {
/**
*
* 描述： 跳棋时，拿起的那颗棋子的数据变为0，落下位置的数据变为拿起的那颗棋子的数据，
* 但是，被吃掉的那颗棋子的数据暂时变为5，就是变成障碍，将他的索引存到数组中， 待跳棋结束后，再修改被吃掉的棋子，变为0
*
* @param i0：拿起棋子的位置
* @param j0
* @param i：落下棋子的位置
* @param j
*/
public static void chessJump(int i0, int j0, int i, int j) {
// 如果是黑王
if (myFrame.Packaging.getChessData(i0, j0) == myFrame.Packaging.getBlackKing()) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getBlackKing(), i, j); // 将落下的那颗棋子的值变 拿起时的值
// 将被吃的棋子添加到数组中
moveWays.WillBeEatChess.setWillBeEatX(myFrame.Packaging.getI3(), myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(myFrame.Packaging.getJ3(), myFrame.Packaging.getCount());
myFrame.Packaging.setKingFlag(myFrame.Packaging.getWhiteKing()); // 修改棋子标志
myFrame.Packaging.setFlag(myFrame.Packaging.getWhiteChess());
searchTree.InitialSearch.setEatChessColor1(myFrame.Packaging
.getChessData(moveWays.WillBeEatChess.getWillBeEatX(0), moveWays.WillBeEatChess.getWillBeEatY(0)),
searchTree.InitialSearch.getCountStep());
searchTree.InitialSearch.setEatChessColor2(myFrame.Packaging
.getChessData(moveWays.WillBeEatChess.getWillBeEatX(1), moveWays.WillBeEatChess.getWillBeEatY(1)),
searchTree.InitialSearch.getCountStep());
myFrame.Packaging.setChessData(5, myFrame.Packaging.getI3(), myFrame.Packaging.getJ3()); // 将中间的被吃掉的那颗棋子值变5
}
// 如果是白王
if (myFrame.Packaging.getChessData(i0, j0) == myFrame.Packaging.getWhiteKing()) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getWhiteKing(), i, j); // 将落下的那颗棋子的值变 拿起时的值
// 将被吃的棋子添加到数组中
moveWays.WillBeEatChess.setWillBeEatX(myFrame.Packaging.getI3(), myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(myFrame.Packaging.getJ3(), myFrame.Packaging.getCount());
myFrame.Packaging.setKingFlag(myFrame.Packaging.getBlackKing()); // 修改棋子标志
myFrame.Packaging.setFlag(myFrame.Packaging.getBlackChess());
searchTree.InitialSearch.setEatChessColor1(myFrame.Packaging
.getChessData(moveWays.WillBeEatChess.getWillBeEatX(0), moveWays.WillBeEatChess.getWillBeEatY(0)),
searchTree.InitialSearch.getCountStep());
searchTree.InitialSearch.setEatChessColor2(myFrame.Packaging
.getChessData(moveWays.WillBeEatChess.getWillBeEatX(1), moveWays.WillBeEatChess.getWillBeEatY(1)),
searchTree.InitialSearch.getCountStep());
myFrame.Packaging.setChessData(5, myFrame.Packaging.getI3(), myFrame.Packaging.getJ3()); // 将中间的被吃掉的那颗棋子值变5
}
// 如果是黑棋
if (myFrame.Packaging.getChessData(i0, j0) == myFrame.Packaging.getBlackChess()) {
if (moveWays.JudgeFourAngleCanJump.leftUpCanJump(i0, j0)) { // 左上能跳
if (i == (i0 - 2) && j == (j0 - 2)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getBlackChess(), i, j); // 将落下的那颗棋子的值变 拿起时的值
// 将被吃的棋子添加到数组中
moveWays.WillBeEatChess.setWillBeEatX(i0 - 1, myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(j0 - 1, myFrame.Packaging.getCount());
searchTree.InitialSearch
.setEatChessColor1(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(0),
moveWays.WillBeEatChess.getWillBeEatY(0)),
searchTree.InitialSearch.getCountStep());
searchTree.InitialSearch
.setEatChessColor2(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(1),
moveWays.WillBeEatChess.getWillBeEatY(1)),
searchTree.InitialSearch.getCountStep());
myFrame.Packaging.setChessData(5, i0 - 1, j0 - 1); // 将中间的被吃掉的那颗棋子值变5
}
}
if (moveWays.JudgeFourAngleCanJump.rightUpCanJump(i0, j0)) { // 右上
if (i == (i0 - 2) && j == (j0 + 2)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getBlackChess(), i, j); // 将落下的那颗棋子的值变 拿起时的值
// 将被吃的棋子添加到数组中
moveWays.WillBeEatChess.setWillBeEatX(i0 - 1, myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(j0 + 1, myFrame.Packaging.getCount());
searchTree.InitialSearch
.setEatChessColor1(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(0),
moveWays.WillBeEatChess.getWillBeEatY(0)),
searchTree.InitialSearch.getCountStep());
searchTree.InitialSearch
.setEatChessColor2(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(1),
moveWays.WillBeEatChess.getWillBeEatY(1)),
searchTree.InitialSearch.getCountStep());
myFrame.Packaging.setChessData(5, i0 - 1, j0 + 1); // 将中间的被吃掉的那颗棋子值变5
}
}
if (moveWays.JudgeFourAngleCanJump.leftDownCanJump(i0, j0)) { // 左下
if (i == (i0 + 2) && j == (j0 - 2)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getBlackChess(), i, j); // 将落下的那颗棋子的值变 拿起时的值
// 将被吃的棋子添加到数组中
moveWays.WillBeEatChess.setWillBeEatX(i0 + 1, myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(j0 - 1, myFrame.Packaging.getCount());
searchTree.InitialSearch
.setEatChessColor1(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(0),
moveWays.WillBeEatChess.getWillBeEatY(0)),
searchTree.InitialSearch.getCountStep());
searchTree.InitialSearch
.setEatChessColor2(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(1),
moveWays.WillBeEatChess.getWillBeEatY(1)),
searchTree.InitialSearch.getCountStep());
myFrame.Packaging.setChessData(5, i0 + 1, j0 - 1); // 将中间的被吃掉的那颗棋子值变5
}
}
if (moveWays.JudgeFourAngleCanJump.rightDownCanJump(i0, j0)) { // 右下
if (i == (i0 + 2) && j == (j0 + 2)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getBlackChess(), i, j); // 将落下的那颗棋子的值变 拿起时的值
// 将被吃的棋子添加到数组中
moveWays.WillBeEatChess.setWillBeEatX(i0 + 1, myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(j0 + 1, myFrame.Packaging.getCount());
searchTree.InitialSearch
.setEatChessColor1(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(0),
moveWays.WillBeEatChess.getWillBeEatY(0)),
searchTree.InitialSearch.getCountStep());
searchTree.InitialSearch
.setEatChessColor2(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(1),
moveWays.WillBeEatChess.getWillBeEatY(1)),
searchTree.InitialSearch.getCountStep());
myFrame.Packaging.setChessData(5, i0 + 1, j0 + 1); // 将中间的被吃掉的那颗棋子值变5
}
}
myFrame.Packaging.setKingFlag(myFrame.Packaging.getWhiteKing()); // 修改棋子标志
myFrame.Packaging.setFlag(myFrame.Packaging.getWhiteChess());
}
// 如果是白棋
if (myFrame.Packaging.getChessData(i0, j0) == myFrame.Packaging.getWhiteChess()) {
if (moveWays.JudgeFourAngleCanJump.leftUpCanJump(i0, j0)) { // 左上能跳
if (i == (i0 - 2) && j == (j0 - 2)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getWhiteChess(), i, j); // 将落下的那颗棋子的值变 拿起时的值
// 将被吃的棋子添加到数组中
moveWays.WillBeEatChess.setWillBeEatX(i0 - 1, myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(j0 - 1, myFrame.Packaging.getCount());
searchTree.InitialSearch
.setEatChessColor1(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(0),
moveWays.WillBeEatChess.getWillBeEatY(0)),
searchTree.InitialSearch.getCountStep());
searchTree.InitialSearch
.setEatChessColor2(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(1),
moveWays.WillBeEatChess.getWillBeEatY(1)),
searchTree.InitialSearch.getCountStep());
myFrame.Packaging.setChessData(5, i0 - 1, j0 - 1); // 将中间的被吃掉的那颗棋子值变5
}
}
if (moveWays.JudgeFourAngleCanJump.rightUpCanJump(i0, j0)) { // 右上
if (i == (i0 - 2) && j == (j0 + 2)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getWhiteChess(), i, j); // 将落下的那颗棋子的值变 拿起时的值
// 将被吃的棋子添加到数组中
moveWays.WillBeEatChess.setWillBeEatX(i0 - 1, myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(j0 + 1, myFrame.Packaging.getCount());
searchTree.InitialSearch
.setEatChessColor1(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(0),
moveWays.WillBeEatChess.getWillBeEatY(0)),
searchTree.InitialSearch.getCountStep());
searchTree.InitialSearch
.setEatChessColor2(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(1),
moveWays.WillBeEatChess.getWillBeEatY(1)),
searchTree.InitialSearch.getCountStep());
myFrame.Packaging.setChessData(5, i0 - 1, j0 + 1); // 将中间的被吃掉的那颗棋子值变5
}
}
if (moveWays.JudgeFourAngleCanJump.leftDownCanJump(i0, j0)) { // 左下
if (i == (i0 + 2) && j == (j0 - 2)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getWhiteChess(), i, j); // 将落下的那颗棋子的值变 拿起时的值
// 将被吃的棋子添加到数组中
moveWays.WillBeEatChess.setWillBeEatX(i0 + 1, myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(j0 - 1, myFrame.Packaging.getCount());
searchTree.InitialSearch
.setEatChessColor1(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(0),
moveWays.WillBeEatChess.getWillBeEatY(0)),
searchTree.InitialSearch.getCountStep());
searchTree.InitialSearch
.setEatChessColor2(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(1),
moveWays.WillBeEatChess.getWillBeEatY(1)),
searchTree.InitialSearch.getCountStep());
myFrame.Packaging.setChessData(5, i0 + 1, j0 - 1); // 将中间的被吃掉的那颗棋子值变5
}
}
if (moveWays.JudgeFourAngleCanJump.rightDownCanJump(i0, j0)) { // 右下
if (i == (i0 + 2) && j == (j0 + 2)) {
myFrame.Packaging.setChessData(0, i0, j0); // 将拿起的那颗棋子值变0
myFrame.Packaging.setChessData(myFrame.Packaging.getWhiteChess(), i, j); // 将落下的那颗棋子的值变 拿起时的值
// 将被吃的棋子添加到数组中
moveWays.WillBeEatChess.setWillBeEatX(i0 + 1, myFrame.Packaging.getCount());
moveWays.WillBeEatChess.setWillBeEatY(j0 + 1, myFrame.Packaging.getCount());
searchTree.InitialSearch
.setEatChessColor1(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(0),
moveWays.WillBeEatChess.getWillBeEatY(0)),
searchTree.InitialSearch.getCountStep());
searchTree.InitialSearch
.setEatChessColor2(
myFrame.Packaging.getChessData(moveWays.WillBeEatChess.getWillBeEatX(1),
moveWays.WillBeEatChess.getWillBeEatY(1)),
searchTree.InitialSearch.getCountStep());
myFrame.Packaging.setChessData(5, i0 + 1, j0 + 1); // 将中间的被吃掉的那颗棋子值变5
}
}
myFrame.Packaging.setKingFlag(myFrame.Packaging.getBlackKing()); // 修改棋子标志
myFrame.Packaging.setFlag(myFrame.Packaging.getBlackChess());
}
}
}蒙特卡洛树搜索模块（monteCarloTreeSearch\Field.java）
package monteCarloTreeSearch;
import java.io.Serializable;
import java.util.*;
import java.util.stream.Collectors;
import org.apache.commons.lang3.SerializationUtils;
/**
*
* @author 名字
* @邮箱：mail@company.com
* @修改日期：2020.11.11
* @描述：国际跳棋
*
*/
public class Field implements Serializable {
private static final long serialVersionUID = 1L;
public final static int WHITE = 1;
public final static int BLACK = 2;
public final static int EMPTY = 0;
public final static int BLOCK = 3;
public final static int SIZE = 10;
public final static double FIGURES = (3.0 * SIZE) / 2.0;
private Vector<Vector<Integer>> desk = new Vector<>();
public HashMap<Integer, Integer> score;
private HashMap<Integer, Integer> kingrows;
private HashMap<Integer, Integer> hashDict;
@SuppressWarnings("serial")
public Field() {
for (int i = 0; i < SIZE; ++i) {
Vector<Integer> temp = new Vector<Integer>();
for (int j = 0; j < SIZE; ++j) {
temp.add(-1);
}
getDesk().add(temp);
}
score = new HashMap<Integer, Integer>() {
{
put(WHITE, 0);
put(BLACK, 0);
put(-1, -1);
}
};
setKingrows(new HashMap<Integer, Integer>() {
{
put(WHITE, SIZE - 1);
put(BLACK, 0);
}
});
setHashDict(new HashMap<>());
// fill whites
for (int i = 0; i < SIZE / 2 - 1; ++i) {
for (int j = 0; j < SIZE; ++j) {
if ((i + j) % 2 == 0) {
getDesk().get(i).set(j, 1);
} else {
getDesk().get(i).set(j, 3);
}
}
}
// fill space
for (int i = SIZE / 2 - 1; i < SIZE / 2 + 1; ++i) {
for (int j = 0; j < SIZE; ++j) {
if ((i + j) % 2 == 0) {
getDesk().get(i).set(j, 0);
} else {
getDesk().get(i).set(j, 3);
}
}
}
// fill blacks
for (int i = SIZE / 2 + 1; i < SIZE; ++i) {
for (int j = 0; j < SIZE; ++j) {
if ((i + j) % 2 == 0) {
getDesk().get(i).set(j, 2);
} else {
getDesk().get(i).set(j, 3);
}
}
}
}
public int invcolor(int color) {
if (color == WHITE) {
return BLACK;
} else if (color == BLACK) {
return WHITE;
}
return color;
}
private List<Integer> move(Vector<Vector<Integer>> desk, Map<Integer, Integer> hashDict,
Map<Integer, Integer> score, Movement movement, int color) throws Exception {
ArrayList<List<Integer>> steps = SerializationUtils.clone(movement.steps);
if (steps.size() < 2) {
throw new Exception("empty move");
}
int x0 = steps.get(0).get(0);
int y0 = steps.get(0).get(1);
steps.remove(0);
if (desk.get(x0).get(y0) % 10.0 != color) {
display();
throw new Exception("illegal move x0=" + x0 + " y0=" + y0 + " desk.get(x0).get(y0) % 10.0="
+ (desk.get(x0).get(y0) % 10.0) + " color=" + color);
}
int x = x0;
int y = y0;
ArrayList<List<Integer>> eaten = new ArrayList<>();
while (steps.size() != 0) {
int x1 = steps.get(0).get(0);
int y1 = steps.get(0).get(1);
steps.remove(0);
if (x1 < 0 || x1 > SIZE || y1 < 0 || y1 > SIZE) {
throw new Exception("illegal move");
}
if (desk.get(x1).get(y1) % 10.0 == BLOCK) {
throw new Exception("illegal move");
}
if (desk.get(x1).get(y1) % 10.0 == color && x1 != x0 && y1 != y0) {
throw new Exception("illegal move x0=" + x0 + " y0=" + y0 + " x1=" + x1 + " y1=" + y1
+ " desk.get(x1).get(y1) % 10.0=" + (desk.get(x1).get(y1) % 10.0) + " color=" + color);
}
if (desk.get(x1).get(y1) % 10.0 == invcolor(color) && steps.size() == 0) {
throw new Exception("illegal move x1=" + x1 + " y1=" + y1 + " desk.get(x1).get(y1) % 10.0="
+ (desk.get(x0).get(y0) % 10.0) + " invcolor(color)=" + invcolor(color)
+ " movement.steps.size()=" + movement.steps.size());
}
if (Math.abs(x - x1) != 1 || Math.abs(y - y1) != 1) {
int startX = x > x1 ? x1 : x;
int endX = x > x1 ? x : x1;
int startY = y > y1 ? y1 : y;
int endY = y > y1 ? y : y1;
for (int xx = startX + 1; xx < endX; ++xx) {
for (int yy = startY + 1; yy < endY; ++yy) {
if (desk.get(xx).get(yy) % 10.0 == invcolor(color)) {
eaten.add(Arrays.asList(xx, yy));
}
}
}
}
if (desk.get(x1).get(y1) % 10.0 == invcolor(color)) {
eaten.add(Arrays.asList(x1, y1));
}
x = x1;
y = y1;
}
// // the moving was correct, apply changes
eaten.forEach(li -> {
int xe = li.get(0);
int ye = li.get(1);
desk.get(xe).set(ye, EMPTY);
});
score.put(color, score.get(color) + eaten.size());
// set target position
desk.get(x).set(y, desk.get(x0).get(y0));
// clean initial position
desk.get(x0).set(y0, EMPTY);
// check for kings
if (x == getKingrows().get(color) && desk.get(x).get(y) / 10.0 < 1) {
desk.get(x).set(y, desk.get(x).get(y) + 10);
}
int deskHash = desk.hashCode();
if (hashDict.containsKey(deskHash)) {
if (hashDict.get(deskHash) == 2) {
score.put(-1, 0);
} else {
hashDict.put(deskHash, hashDict.get(deskHash) + 1);
}
} else {
hashDict.put(deskHash, 1);
}
return Arrays.asList(x, y);
}
public List<Integer> move(Movement movement, int color) throws Exception {
return move(getDesk(), getHashDict(), score, movement, color);
}
public Vector<Vector<Integer>> getDesk() {
return desk;
}
public void setDesk(Vector<Vector<Integer>> desk) {
this.desk = desk;
}
public HashMap<Integer, Integer> getKingrows() {
return kingrows;
}
public void setKingrows(HashMap<Integer, Integer> kingrows) {
this.kingrows = kingrows;
}
public HashMap<Integer, Integer> getHashDict() {
return hashDict;
}
public void setHashDict(HashMap<Integer, Integer> hashDict) {
this.hashDict = hashDict;
}
@FunctionalInterface
private interface neighbourKingMoveFunction<One, Two, Three> extends Serializable {
ArrayList<Movement> neighbourKingMove(One one, Two two, Three three);
}
//从根节点R开始，选择连续的子节点向下至叶子节点L。后面给出了一种选择子节点的方法，让游戏树向最优的方向扩展
private ArrayList<Movement> complexOptions(Vector<Vector<Integer>> rootDesk, HashMap<Integer, Integer> rootHashDict,
HashMap<Integer, Integer> score, List<Integer> position,
neighbourKingMoveFunction<Vector<Vector<Integer>>, List<Integer>, Integer> nextMoves, int color)
throws Exception {
ArrayList<Movement> neighbourMoves = nextMoves.neighbourKingMove(rootDesk, position, color);
ArrayList<Movement> endMoves = new ArrayList<>();
endMoves.addAll(neighbourMoves.stream().filter(nMove -> nMove.score == 0).collect(Collectors.toList()));
ArrayList<List> neighbourMoves2 = new ArrayList<>();
ArrayList<List> finalNeighbourMoves = neighbourMoves2;
neighbourMoves.stream().filter(nMove -> nMove.score > 0).forEach(nMove -> {
finalNeighbourMoves.add(Arrays.asList(nMove, SerializationUtils.clone(rootDesk),
SerializationUtils.clone(rootHashDict), SerializationUtils.clone(score)));
});
while (neighbourMoves2.size() > 0) {
ArrayList<List> nextNMoves = new ArrayList<>();
for (List list : neighbourMoves2) {
Movement nMove2 = (Movement) list.get(0);
Vector<Vector<Integer>> desk2 = (Vector<Vector<Integer>>) list.get(1);
HashMap<Integer, Integer> hashDict2 = (HashMap<Integer, Integer>) list.get(2);
HashMap<Integer, Integer> score2 = (HashMap<Integer, Integer>) list.get(3);
Vector<Vector<Integer>> newDesk = SerializationUtils.clone(desk2);
Map<Integer, Integer> newHashDict = SerializationUtils.clone(hashDict2);
Map<Integer, Integer> newScore = SerializationUtils.clone(score2);
move(newDesk, newHashDict, newScore, nMove2, color);
List<Integer> target = nMove2.steps.get(nMove2.steps.size() - 1);
ArrayList<Movement> childNeighbourMoves = nextMoves.neighbourKingMove(newDesk, target, color);
List<Movement> scoreMoves = childNeighbourMoves.stream().filter(cnMove -> cnMove.score > 0)
.collect(Collectors.toList());
if (scoreMoves.size() == 0) {
endMoves.add(nMove2);
} else {
for (Movement scoreMove : scoreMoves) {
Movement nextNMove = SerializationUtils.clone(nMove2);
nextNMove.add(scoreMove);
nextNMoves.add(Arrays.asList(nextNMove, desk2, hashDict2, SerializationUtils.clone(score2)));
}
}
}
neighbourMoves2 = nextNMoves;
}
return endMoves;
}
public List<Movement> options(int color) throws Exception {
ArrayList<List> myCheckers = new ArrayList<>();
ArrayList<Integer> rows = new ArrayList<>();
if (color == BLACK) {
for (int i = SIZE - 1; i > -1; --i) {
rows.add(i);
}
} else {
for (int i = 0; i < SIZE; ++i) {
rows.add(i);
}
}
for (int i : rows) {
for (int j = 0; j < SIZE; ++j) {
if (getDesk().get(i).get(j) % 10 == color) {
myCheckers.add(Arrays.asList(i, j));
}
}
}
ArrayList<Movement> moves = new ArrayList<Movement>();
for (List<?> list : myCheckers) {
int x = (int) list.get(0);
int y = (int) list.get(1);
ArrayList<Movement> endMoves = new ArrayList<Movement>();
if ((int) (getDesk().get(x).get(y) / 10.0) == 1) {
endMoves = complexOptions(this.getDesk(), this.getHashDict(), this.score, Arrays.asList(x, y),
neighbourKingMovesFunc, color);
} else {
endMoves = complexOptions(this.getDesk(), this.getHashDict(), this.score, Arrays.asList(x, y), neighbourMovesFunc,
color);
}
moves.addAll(endMoves);
}
List<Movement> filterMoves = moves.stream().filter(m -> m.score > 0).collect(Collectors.toList());
if (filterMoves.size() > 0) {
return filterMoves;
}
return moves;
}
private void diagMoves(Vector<Vector<Integer>> desk, List<Movement> moves, List<Integer> direction, int r,
List<Integer> cell, int color) {
int x = cell.get(0);
int y = cell.get(1);
int dx = direction.get(0);
int dy = direction.get(1);
Movement movement = new Movement(cell);
for (int i = 1; i <= r; ++i) {
int x0 = x + dx * i;
int y0 = y + dy * i;
if (desk.get(x0).get(y0) % 10 == EMPTY) {
if (color == WHITE && x0 == x - 1) {
break;
} else if (color == BLACK && x0 == x + 1) {
break;
}
movement.steps.add(Arrays.asList(x0, y0));
moves.add(SerializationUtils.clone(movement));
break;
} else if (desk.get(x0).get(y0) % 10 == invcolor(color)) {
movement.steps.add(Arrays.asList(x0, y0));
movement.score++;
continue;
} else {
break;
}
}
}
public ArrayList<Movement> neighbourMoves(Vector<Vector<Integer>> desk, List<Integer> position, int color) {
int x = position.get(0);
int y = position.get(1);
ArrayList<Movement> movements = new ArrayList<>();
int lowerX = x - 2 > 0 ? x - 2 : 0;
int upperX = x + 2 < SIZE - 1 ? x + 2 : SIZE - 1;
int lowerY = y - 2 > 0 ? y - 2 : 0;
int upperY = y + 2 < SIZE - 1 ? y + 2 : SIZE - 1;
int rMax = y - lowerY < x - lowerX ? y - lowerY : x - lowerX;
List<Integer> dir = Arrays.asList(-1, -1);
diagMoves(desk, movements, dir, rMax, position, color);
rMax = upperY - y < upperX - x ? upperY - y : upperX - x;
dir = Arrays.asList(1, 1);
diagMoves(desk, movements, dir, rMax, position, color);
rMax = y - lowerY < upperX - x ? y - lowerY : upperX - x;
dir = Arrays.asList(1, -1);
diagMoves(desk, movements, dir, rMax, position, color);
rMax = upperY - y < x - lowerX ? upperY - y : x - lowerX;
dir = Arrays.asList(-1, 1);
diagMoves(desk, movements, dir, rMax, position, color);
return movements;
}
private void diagKingMoves(Vector<Vector<Integer>> desk, List<Movement> moves, List<Integer> direction, int r,
List<Integer> cell, int color) {
ArrayList<Movement> tmpMoves = new ArrayList<>();
int x = cell.get(0);
int y = cell.get(1);
int dx = direction.get(0);
int dy = direction.get(1);
Movement movement = new Movement(cell);
int px = x;
int py = y;
for (int i = 1; i <= r; ++i) {
int x0 = x + dx * i;
int y0 = y + dy * i;
if (desk.get(x0).get(y0) % 10 == EMPTY) {
movement.steps.add(Arrays.asList(x0, y0));
tmpMoves.add(SerializationUtils.clone(movement));
} else if (desk.get(x0).get(y0) % 10 == invcolor(color)) {
if (desk.get(px).get(py) == EMPTY) {
movement.steps.add(Arrays.asList(x0, y0));
movement.score++;
} else if (px == x && py == y) {
movement.steps.add(Arrays.asList(x0, y0));
movement.score++;
} else {
break;
}
} else {
break;
}
px = x0;
py = y0;
}
if (tmpMoves.size() > 0) {
moves.add(tmpMoves.get(tmpMoves.size() - 1));
}
}
private neighbourKingMoveFunction neighbourKingMovesFunc = new neighbourKingMoveFunction() {
@Override
public ArrayList<Movement> neighbourKingMove(Object desk, Object position, Object color) {
return neighbourKingMoves((Vector<Vector<Integer>>) desk, (List<Integer>) position, (int) color);
}
};
private neighbourKingMoveFunction neighbourMovesFunc = (desk, position,
color) -> neighbourMoves((Vector<Vector<Integer>>) desk, (List<Integer>) position, (int) color);
public ArrayList<Movement> neighbourKingMoves(Vector<Vector<Integer>> desk, List<Integer> position, int color) {
int x = position.get(0);
int y = position.get(1);
ArrayList<Movement> moves = new ArrayList<>();
int lowerX = x - (SIZE - 1) > 0 ? x - (SIZE - 1) : 0;
int upperX = x + (SIZE - 1) < SIZE - 1 ? x + (SIZE - 1) : SIZE - 1;
int lowerY = y - (SIZE - 1) > 0 ? y - (SIZE - 1) : 0;
int upperY = y + (SIZE - 1) < SIZE - 1 ? y + (SIZE - 1) : SIZE - 1;
int rMax = y - lowerY < x - lowerX ? y - lowerY : x - lowerX;
List<Integer> dir = Arrays.asList(-1, -1);
diagMoves(desk, moves, dir, rMax, position, color);
rMax = upperY - y < upperX - x ? upperY - y : upperX - x;
dir = Arrays.asList(1, 1);
diagMoves(desk, moves, dir, rMax, position, color);
rMax = y - lowerY < upperX - x ? y - lowerY : upperX - x;
dir = Arrays.asList(1, -1);
diagMoves(desk, moves, dir, rMax, position, color);
rMax = upperY - y < x - lowerX ? upperY - y : x - lowerX;
dir = Arrays.asList(-1, 1);
diagMoves(desk, moves, dir, rMax, position, color);
return moves;
}
public Boolean gameOver() {
return score.get(BLACK) == FIGURES || score.get(WHITE) == FIGURES || score.get(score.size() - 1) == -1;
}
public Boolean blacksWin() {
return score.get(BLACK) == FIGURES;
}
public Boolean whitesWin() {
return score.get(WHITE) == FIGURES;
}
public Boolean win(int color) {
return score.get(color) == FIGURES;
}
public void display() {
for (int i = SIZE - 1; i > -1; --i) {
for (int j = 0; j < SIZE; ++j) {
int bc = getDesk().get(i).get(j) % 10;
char c = bc == 0 ? ' ' : (bc == 3 ? '*' : (bc == 1 ? 'w' : 'b'));
System.out.print(c);
System.out.print(" ");
}
System.out.println();
}
for (int k : score.keySet()) {
int bc = k;
char c2 = bc == 0 ? ' ' : (bc == 3 ? '*' : (bc == 1 ? 'w' : 'b'));
System.out.print(c2);
System.out.print(":");
System.out.print(score.get(k));
System.out.print(" ");
}
System.out.println();
}
}消息提示框模块（myFrame\ToolTip.java）
package myFrame;
import java.awt.*;
import javax.swing.*;
import javax.swing.border.EtchedBorder;
/**
*
* @author 名字
* @邮箱：mail@company.com
* @修改日期：2020.11.11
* @描述：悬浮消息框
*
*/
public class ToolTip {
// 气泡提示宽
private int _width = 300;
// 气泡提示高
private int _height = 100;
// 设定循环的步长
private int _step = 30;
// 每步时间
private int _stepTime = 30;
// 显示时间
private int _displayTime = 6000;
// 目前申请的气泡提示数量
private int _countOfToolTip = 0;
// 当前最大气泡数
private int _maxToolTip = 0;
// 在屏幕上显示的最大气泡提示数量
private int _maxToolTipSceen;
// 字体
private Font _font;
// 边框颜色
private Color _bgColor;
// 背景颜色
private Color _border;
// 消息颜色
private Color _messageColor;
//设置默认显示图片
private Icon _icon = null;
// 差值设定
int _gap;
// 是否要求至顶（jre1.5以上版本方可执行）
boolean _useTop = true;
/**
* 构造函数，初始化默认气泡提示设置
*
*/
public ToolTip() {
// 设定字体
_font = new Font("宋体", 0, 12);
// 设定边框颜色
_bgColor = new Color(255, 255, 225);
_border = Color.BLACK;
_messageColor = Color.BLACK;
_useTop = true;
// 通过调用方法，强制获知是否支持自动窗体置顶
try {
JWindow.class.getMethod("setAlwaysOnTop",
new Class[] { Boolean.class });
} catch (Exception e) {
_useTop = false;
}
}
/**
* 重构JWindow用于显示单一气泡提示框
*
*/
class ToolTipSingle extends JWindow {
private static final long serialVersionUID = 1L;
private JLabel _iconLabel = new JLabel();
private JTextArea _message = new JTextArea();
public ToolTipSingle() {
initComponents();
}
private void initComponents() {
setSize(_width, _height);
_message.setFont(getMessageFont());
JPanel externalPanel = new JPanel(new BorderLayout(1, 1));
externalPanel.setBackground(_bgColor);
// 通过设定水平与垂直差值获得内部面板
JPanel innerPanel = new JPanel(new BorderLayout(getGap(), getGap()));
innerPanel.setBackground(_bgColor);
_message.setBackground(_bgColor);
_message.setMargin(new Insets(4, 4, 4, 4));
_message.setLineWrap(true);
_message.setWrapStyleWord(true);
// 创建具有指定高亮和阴影颜色的阴刻浮雕化边框
EtchedBorder etchedBorder = (EtchedBorder) BorderFactory
.createEtchedBorder();
// 设定外部面板内容边框为风化效果
externalPanel.setBorder(etchedBorder);
// 加载内部面板
externalPanel.add(innerPanel);
_message.setForeground(getMessageColor());
innerPanel.add(_iconLabel, BorderLayout.WEST);
innerPanel.add(_message, BorderLayout.CENTER);
getContentPane().add(externalPanel);
}
/**
* 动画开始
*
*/
public void animate() {
new Animation(this).start();
}
}
/**
* 此类处则动画处理
*
*/
class Animation extends Thread {
ToolTipSingle _single;
public Animation(ToolTipSingle single) {
this._single = single;
}
/**
* 调用动画效果，移动窗体坐标
*
* @param posx
* @param startY
* @param endY
* @throws InterruptedException
*/
private void animateVertically(int posx, int startY, int endY)
throws InterruptedException {
_single.setLocation(posx, startY);
if (endY < startY) {
for (int i = startY; i > endY; i -= _step) {
_single.setLocation(posx, i);
Thread.sleep(_stepTime);
}
} else {
for (int i = startY; i < endY; i += _step) {
_single.setLocation(posx, i);
Thread.sleep(_stepTime);
}
}
_single.setLocation(posx, endY);
}
/**
* 开始动画处理
*/
public void run() {
try {
boolean animate = true;
GraphicsEnvironment ge = GraphicsEnvironment
.getLocalGraphicsEnvironment();
Rectangle screenRect = ge.getMaximumWindowBounds();
int screenHeight = (int) screenRect.height;
int startYPosition;
int stopYPosition;
if (screenRect.y > 0) {
animate = false;
}
_maxToolTipSceen = screenHeight / _height;
int posx = (int) screenRect.width - _width - 1;
_single.setLocation(posx, screenHeight);
_single.setVisible(true);
if (_useTop) {
_single.setAlwaysOnTop(true);
}
if (animate) {
startYPosition = screenHeight;
stopYPosition = startYPosition - _height - 1;
if (_countOfToolTip > 0) {
stopYPosition = stopYPosition
- (_maxToolTip % _maxToolTipSceen * _height);
} else {
_maxToolTip = 0;
}
} else {
startYPosition = screenRect.y - _height;
stopYPosition = screenRect.y;
if (_countOfToolTip > 0) {
stopYPosition = stopYPosition
+ (_maxToolTip % _maxToolTipSceen * _height);
} else {
_maxToolTip = 0;
}
}
_countOfToolTip++;
_maxToolTip++;
animateVertically(posx, startYPosition, stopYPosition);
Thread.sleep(_displayTime);
animateVertically(posx, stopYPosition, startYPosition);
_countOfToolTip--;
_single.setVisible(false);
_single.dispose();
} catch (Exception e) {
throw new RuntimeException(e);
}
}
}
/**
* 设定显示的图片及信息
*
* @param icon
* @param msg
*/
public void setToolTip(Icon icon, String msg) {
ToolTipSingle single = new ToolTipSingle();
if (icon != null) {
single._iconLabel.setIcon(icon);
}
single._message.setText(msg);
single.animate();
}
/**
* 设定显示的信息
*
* @param msg
*/
public void setToolTip(String msg) {
setToolTip(_icon, msg);
}
/**
* 获得当前消息字体
*
* @return
*/
public Font getMessageFont() {
return _font;
}
/**
* 设置当前消息字体
*
* @param font
*/
public void setMessageFont(Font font) {
_font = font;
}
/**
* 获得边框颜色
*
* @return
*/
public Color getBorderColor() {
return _border;
}
/**
* 设置边框颜色
*
* @param borderColor
*/
public void setBorderColor(Color borderColor) {
this._border = borderColor;
}
/**
* 获得显示时间
*
* @return
*/
public int getDisplayTime() {
return _displayTime;
}
/**
* 设置显示时间
*
* @param displayTime
*/
public void setDisplayTime(int displayTime) {
this._displayTime = displayTime;
}
/**
* 获得差值
*
* @return
*/
public int getGap() {
return _gap;
}
/**
* 设定差值
*
* @param gap
*/
public void setGap(int gap) {
this._gap = gap;
}
/**
* 获得信息颜色
*
* @return
*/
public Color getMessageColor() {
return _messageColor;
}
/**
* 设定信息颜色
*
* @param messageColor
*/
public void setMessageColor(Color messageColor) {
this._messageColor = messageColor;
}
/**
* 获得默认显示图片
*
* @return
*/
public Icon getIcon() {
return _icon;
}
/**
* 设定默认显示图片
*
* @param icon
*/
public void setIcon(Icon icon) {
this._icon = icon;
}
/**
* 获得循环步长
*
* @return
*/
public int getStep() {
return _step;
}
/**
* 设定循环步长
*
* @param _step
*/
public void setStep(int _step) {
this._step = _step;
}
public int getStepTime() {
return _stepTime;
}
public void setStepTime(int _stepTime) {
this._stepTime = _stepTime;
}
public Color getBackgroundColor() {
return _bgColor;
}
public void setBackgroundColor(Color bgColor) {
this._bgColor = bgColor;
}
public int getHeight() {
return _height;
}
public void setHeight(int height) {
this._height = height;
}
public int getWidth() {
return _width;
}
public void setWidth(int width) {
this._width = width;
}
public static void main(String[] args) {
ToolTip tip = new ToolTip();
tip.setToolTip("“程序员”就是特指越写程序身材越“圆”那群人 -- cping1982");
}
}棋盘状态管理模块（searchTree\GameRecord.java）
package searchTree;
import java.util.ArrayList;
/**
*
* @author 名字
* @邮箱：mail@company.com
* @修改日期：2020.11.11
* @描述：棋盘状态管理类
*
*/
public class GameRecord {
private static ArrayList<GameRecordStorage> gameRecordList = new ArrayList<GameRecordStorage>();
private static int index = -1;
public static ArrayList<GameRecordStorage> getGameRecordList() {
return gameRecordList;
}
public static void setGameRecordList(ArrayList<GameRecordStorage> gameRecordList) {
GameRecord.gameRecordList = gameRecordList;
}
public static void backupGame() {
GameRecordStorage gameRecordStorage = new GameRecordStorage();
gameRecordStorage.backups();
gameRecordList.add(gameRecordStorage);
index++;
}
public static void renewGame() throws Exception {
if (index > 0) {
GameRecordStorage gameRecordStorage = gameRecordList.get(index - 1);
gameRecordStorage.renew();
gameRecordList.remove(index);
index--;
} else {
throw new Exception("国际跳棋棋谱为空！");
}
}
}棋盘状态记录模块（searchTree\GameRecordStorage.java）
package searchTree;
import myFrame.MainFrame;
import java.util.*;
import org.apache.commons.lang3.SerializationUtils;
/**
*
* @author 名字
* @邮箱：mail@company.com @修改日期：2020.11.11
* @描述：棋盘状态记录类
*
*/
public class GameRecordStorage {
private int i0s = myFrame.AI.getI0();
private int j0s = myFrame.AI.getJ0();
private int i1s = myFrame.AI.getI1();
private int j1s = myFrame.AI.getJ1();
private int i2s = myFrame.AI.getI2();
private int j2s = myFrame.AI.getJ2();
private int i4s = myFrame.Packaging.getI4();
private int j4s = myFrame.Packaging.getJ4();
private int i3s = myFrame.Packaging.getI3();
private int j3s = myFrame.Packaging.getJ3();
private boolean mustJumpChesss = myFrame.AI.isMustJumpChess();
private boolean mustEvenJumps = myFrame.AI.isMustEvenJump();
private boolean ZTs = myFrame.AI.isZT();
private boolean canJumps = myFrame.AI.isCanJump();
private boolean goodSteps = myFrame.AI.isGoodStep();
private int steps = MainFrame.getStep(); // 记录走了几回合
private boolean enemyLaterIsEmptys = MainFrame.isEnemyLaterIsEmpty();// 敌方棋子后有空位置
private int[][] ChessDatas = new int[10][10];
private int flags;
private int kingFlags;
private Vector<Vector<Integer>> desk;
private HashMap<Integer, Integer> score;
private HashMap<Integer, Integer> kingrows, hashDict;
private int color1;
private int invColor1;
private int rounds1;
private int color2;
private int invColor2;
private int rounds2;
public int getI0s() {
return i0s;
}
public void setI0s(int i0s) {
this.i0s = i0s;
}
public int getJ0s() {
return j0s;
}
public void setJ0s(int j0s) {
this.j0s = j0s;
}
public int getI1s() {
return i1s;
}
public void setI1s(int i1s) {
this.i1s = i1s;
}
public int getJ1s() {
return j1s;
}
public void setJ1s(int j1s) {
this.j1s = j1s;
}
public int getI2s() {
return i2s;
}
public void setI2s(int i2s) {
this.i2s = i2s;
}
public int getJ2s() {
return j2s;
}
public void setJ2s(int j2s) {
this.j2s = j2s;
}
public int getI4s() {
return i4s;
}
public void setI4s(int i4s) {
this.i4s = i4s;
}
public int getJ4s() {
return j4s;
}
public void setJ4s(int j4s) {
this.j4s = j4s;
}
public int getI3s() {
return i3s;
}
public void setI3s(int i3s) {
this.i3s = i3s;
}
public int getJ3s() {
return j3s;
}
public void setJ3s(int j3s) {
this.j3s = j3s;
}
public boolean isMustJumpChesss() {
return mustJumpChesss;
}
public void setMustJumpChesss(boolean mustJumpChesss) {
this.mustJumpChesss = mustJumpChesss;
}
public boolean isMustEvenJumps() {
return mustEvenJumps;
}
public void setMustEvenJumps(boolean mustEvenJumps) {
this.mustEvenJumps = mustEvenJumps;
}
public boolean isZTs() {
return ZTs;
}
public void setZTs(boolean zTs) {
ZTs = zTs;
}
public boolean isCanJumps() {
return canJumps;
}
public void setCanJumps(boolean canJumps) {
this.canJumps = canJumps;
}
public boolean isGoodSteps() {
return goodSteps;
}
public void setGoodSteps(boolean goodSteps) {
this.goodSteps = goodSteps;
}
public int getSteps() {
return steps;
}
public void setSteps(int steps) {
this.steps = steps;
}
public boolean isEnemyLaterIsEmptys() {
return enemyLaterIsEmptys;
}
public void setEnemyLaterIsEmptys(boolean enemyLaterIsEmptys) {
this.enemyLaterIsEmptys = enemyLaterIsEmptys;
}
public int getChessDatas(int i, int j) {
return ChessDatas[i][j];
}
public void setChessDatas(int chessDatas, int i, int j) {
ChessDatas[i][j] = chessDatas;
}
/**
*
* 描述：数据备份，保护现场
*/
public void backups() {
setI0s(myFrame.AI.getI0());
setJ0s(myFrame.AI.getJ0());
setI1s(myFrame.AI.getI1());
setJ1s(myFrame.AI.getJ1());
setI2s(myFrame.AI.getI2());
setJ2s(myFrame.AI.getJ2());
setI3s(myFrame.Packaging.getI3());
setJ3s(myFrame.Packaging.getJ3());
setI4s(myFrame.Packaging.getI4());
setJ4s(myFrame.Packaging.getJ4());
setMustJumpChesss(myFrame.AI.isMustJumpChess());
setMustEvenJumps(myFrame.AI.isMustEvenJump());
setZTs(myFrame.AI.isZT());
setCanJumps(myFrame.AI.isCanJump());
setGoodSteps(myFrame.AI.isGoodStep());
setSteps(MainFrame.getStep());
setEnemyLaterIsEmptys(MainFrame.isEnemyLaterIsEmpty());
for (int i = 0; i < 10; i++) {
for (int j = 0; j < 10; j++) {
setChessDatas(myFrame.Packaging.getChessData(i, j), i, j);
}
}
flags = myFrame.Packaging.getFlag();
kingFlags = myFrame.Packaging.getKingFlag();
desk = SerializationUtils.clone(MainFrame.game_field.getDesk());
score = SerializationUtils.clone(MainFrame.game_field.score);
kingrows = SerializationUtils.clone(MainFrame.game_field.getKingrows());
hashDict = SerializationUtils.clone(MainFrame.game_field.getHashDict());
color1 = MainFrame.player1.getColor();
invColor1 = MainFrame.player1.getInvColor();
rounds1 = MainFrame.player1.getRounds();
color2 = MainFrame.player2.getColor();
invColor2 = MainFrame.player2.getInvColor();
rounds2 = MainFrame.player2.getRounds();
}
/**
*
* 描述：恢复数据
*/
public void renew() {
myFrame.AI.setI0(getI0s());
myFrame.AI.setJ0(getJ0s());
myFrame.AI.setI1(getI1s());
myFrame.AI.setJ1(getJ1s());
myFrame.AI.setI2(getI2s());
myFrame.AI.setJ2(getJ2s());
myFrame.Packaging.setI3(getI3s());
myFrame.Packaging.setJ3(getJ3s());
myFrame.Packaging.setI4(getI4s());
myFrame.Packaging.setJ4(getJ4s());
myFrame.AI.setMustJumpChess(isMustJumpChesss());
myFrame.AI.setMustEvenJump(isMustEvenJumps());
myFrame.AI.setZT(isZTs());
myFrame.AI.setCanJump(isCanJumps());
myFrame.AI.setGoodStep(isGoodSteps());
MainFrame.setStep(getSteps());
MainFrame.setEnemyLaterIsEmpty(isEnemyLaterIsEmptys());
for (int i = 0; i < 10; i++) {
for (int j = 0; j < 10; j++) {
myFrame.Packaging.setChessData(getChessDatas(i, j), i, j);
}
}
myFrame.Packaging.setFlag(flags);
myFrame.Packaging.setKingFlag(kingFlags);
MainFrame.game_field.setDesk(SerializationUtils.clone(desk));
MainFrame.game_field.score = SerializationUtils.clone(score);
MainFrame.game_field.setKingrows(SerializationUtils.clone(kingrows));
MainFrame.game_field.setHashDict(SerializationUtils.clone(hashDict));
MainFrame.player1.setColor(color1);
MainFrame.player1.setInvColor(invColor1);
MainFrame.player1.setRounds(rounds1);
MainFrame.player2.setColor(color2);
MainFrame.player2.setInvColor(invColor2);
MainFrame.player2.setRounds(rounds2);
}
}四、总结
本软件使用蒙特卡洛树搜索算法实现人工智能走棋。Java swing图形界面使用绘制棋谱，并加入鼠标点击和移动事件和棋子移动动画实现增加用户交互性，还加入了消息提示窗口和悔棋功能。人工智能走棋方面，由于要处理很多棋谱数据，程序的运行比较占用内存和CPU资源比高，程序思考走棋的时间较长，可以优化代码逻辑和压缩棋谱数据以缩短运行时间。
本实例支付的费用只是购买源码的费用，如有疑问欢迎在文末留言交流，如需作者在线代码指导、定制等，在作者开启付费服务后，可以点击“购买服务”进行实时联系，请知悉，谢谢
手机上随时阅读、收藏该文章 ？请扫下方二维码
